RTQ2117CGQVT-QA - RICHTEK

Description: Switching Voltage Regulators USB Type-C DFP with Charging Port Controller and Integrated 36V 3.5A Synchronous Buck Converter

Download RTQ2117CGQVT-QA Model
Schematic
symbols

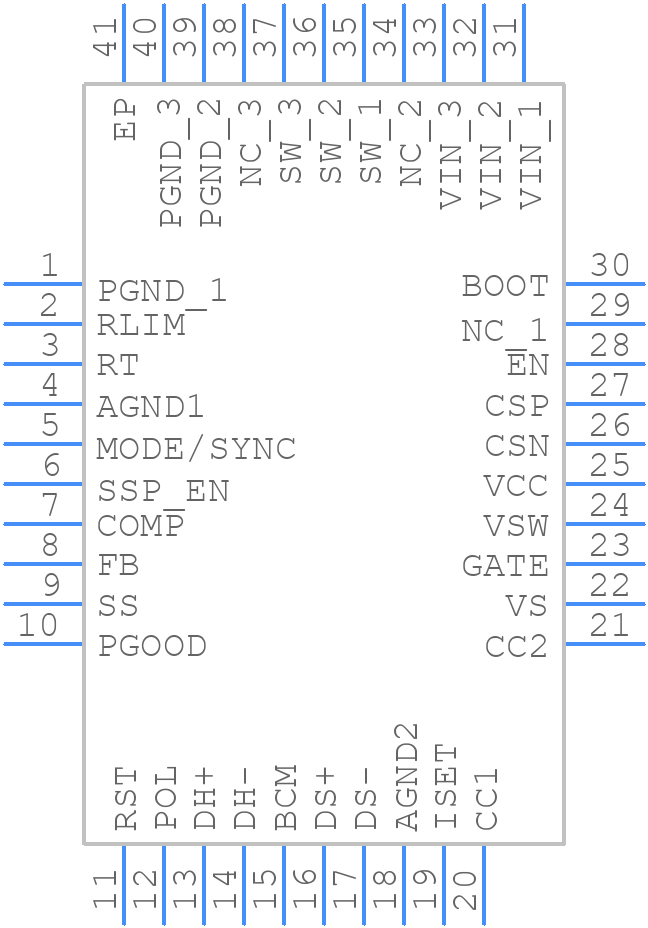

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
RTQ2117CGQVT-QA - RICHTEK PCB footprint - Other - Other - RTQ2117CGQVT-QA-1
click to zoom
3D Models
RTQ2117CGQVT-QA - RICHTEK  - 3D model - Other - RTQ2117CGQVT-QA-1
click to zoom

RTQ2117CGQVT-QA Details

  • Manufacturer Part Number:

    RTQ2117CGQVT-QA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    VQFN-40

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    7

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    USB PD CONTROLLER

  • JESD-30 Code:

    S-PQCC-N40

  • Length:

    6 mm

  • Number of Functions:

    1

  • Number of Terminals:

    40

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC40,.24SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    36 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +2.85V

  • Width:

    6 mm

RTQ2117CGQVT-QA Frequently Asked Questions (FAQs)

  • Richtek provides a recommended PCB layout in their application note ANI-23, which includes guidelines for thermal vias, copper pours, and component placement to minimize thermal resistance and ensure reliable operation.
  • The input capacitor selection depends on the input voltage, output current, and ripple current requirements. Richtek recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the maximum input voltage. A X5R or X7R dielectric is recommended for its stability over temperature.
  • According to Richtek's application note ANI-23, the maximum output current derating for high ambient temperatures is 0.5A/°C above 50°C. This means that for every 1°C increase in ambient temperature above 50°C, the maximum output current should be reduced by 0.5A to ensure reliable operation.
  • Yes, the RTQ2117CGQVT-QA is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, it's essential to follow Richtek's guidelines for PCB design, component selection, and testing to ensure the regulator meets the required reliability and quality standards.
  • Oscillations or instability issues can be caused by inadequate input decoupling, incorrect output capacitor selection, or poor PCB layout. Richtek recommends following their application note ANI-23 for troubleshooting guidelines, which include checking the input and output voltage waveforms, ensuring proper decoupling, and verifying the PCB layout meets the recommended guidelines.
