RTQ2516GSP-QT footprint, schematic symbol and 3D model by RICHTEK

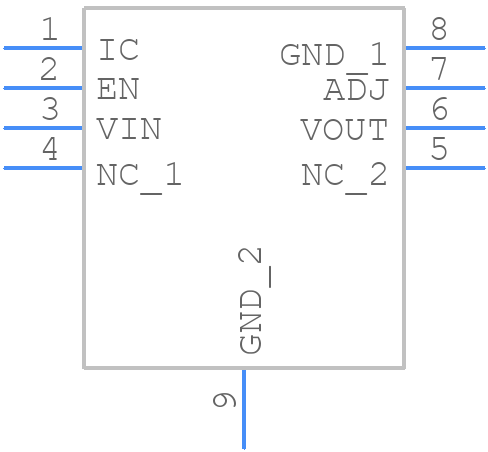

Symbol

click to zoom

PCB Footprints

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for RTQ2516GSP-QT
Part Number RTQ2516GSP-QT
Manufacturer RICHTEK
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - 8-Lead SOP
Released Date Nov 10, 2023
Last Modified Date Nov 10, 2023 3:32 AM UTC
Pinout / Pin List Click Here (Member Only)

RTQ2516GSP-QT Details

Manufacturer Part Number:
RTQ2516GSP-QT
Rohs Code:
Yes
Part Life Cycle Code:
End Of Life
Package Description:
SOP-8
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Richtek Technology Corp
YTEOL:
0
Adjustability:
ADJUSTABLE
Dropout Voltage1-Max:
0.6 V
Dropout Voltage1-Nom:
0.24 V
JESD-30 Code:
R-PDSO-G8
Length:
4.9 mm
Line Regulation-Max (%/V):
0.4
Load Regulation-Max(%):
1.5%
Number of Functions:
1
Number of Outputs:
1
Number of Terminals:
8
Operating Temperature TJ-Max:
125 °C
Operating Temperature TJ-Min:
-40 °C
Output Current1-Max:
2 A
Output Voltage1-Min:
0.5 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG
Packing Method:
TR, 13 INCH
Regulator Type:
ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR
Screening Level:
AEC-Q100
Seated Height-Max:
1.753 mm
Surface Mount:
YES
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Width:
3.9 mm

RTQ2516GSP-QT Frequently Asked Questions (FAQs)

A 4-layer PCB with a solid ground plane and thermal vias is recommended. The device should be placed near a thermal pad or a heat sink to dissipate heat efficiently.
Monitor the input voltage, output voltage, and output current to ensure they are within the specified ranges. Also, ensure the device is operated within the recommended ambient temperature range.
Handle the device by the body, avoid touching the pins, and use an anti-static wrist strap or mat to prevent electrostatic discharge damage.
Check the input voltage, output voltage, and output current for any anomalies. Verify the PCB layout and thermal design. Consult the datasheet and application notes for troubleshooting guidelines.
Yes, use low-ESR capacitors with a voltage rating that meets or exceeds the maximum input voltage. The output capacitor should be a low-ESR ceramic capacitor with a capacitance value that meets the recommended range.

Trust Checks

Community Provided

System Verified

Community Approved

RTQ2516GSP-QT Overview

Use the download button to access the RTQ2516GSP-QT schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like RTQ25, or try a keyword search, such as Linear Regulator ICs
