RTQ2533WGQV(2) - RICHTEK

Description: Linear Voltage Regulator IC Positive Adjustable 1 Output 3A 20-VQFN (3.5x3.5)

Download RTQ2533WGQV(2) Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

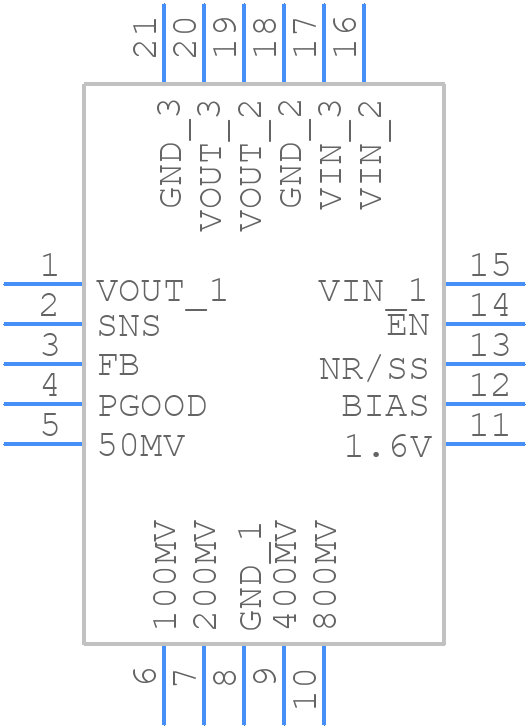

RTQ2533WGQV(2) - RICHTEK - PCB symbol
click to zoom
PCB Footprints
RTQ2533WGQV(2) - RICHTEK PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - V-Type 20L QFN 3.5x3.5 Package
click to zoom
3D Models
RTQ2533WGQV(2) - RICHTEK - 3D model - Quad Flat No-Lead - V-Type 20L QFN 3.5x3.5 Package
click to zoom

RTQ2533WGQV(2) Details

  • Manufacturer Part Number:

    RTQ2533WGQV(2)

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Richtek Technology Corp

  • YTEOL:

    8.3

  • Adjustability:

    ADJUSTABLE

  • Dropout Voltage1-Max:

    0.18 V

  • Dropout Voltage1-Nom:

    0.11 V

  • JESD-30 Code:

    S-XQCC-N20

  • Length:

    3.5 mm

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    20

  • Operating Temperature TJ-Max:

    125 °C

  • Operating Temperature TJ-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Max:

    5.5 V

  • Output Voltage1-Min:

    0.8 V

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.14SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Regulator Type:

    ADJUSTABLE POSITIVE SINGLE OUTPUT LDO REGULATOR

  • Seated Height-Max:

    1 mm

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3.5 mm
