- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for RV-8523-C3
- Part Number RV-8523-C3
- Manufacturer Micro Crystal AG
- Pin Count 10
- Part Category Crystal or Oscillator
- Package Category Other
- Footprint Name Other - RV-8523-C3-2
- Released Date Dec 2, 2020
- Last Modified Date Dec 21, 2023 3:28 PM UTC
- Pinout / Pin List Click Here (Member Only)
RV-8523-C3 Details
-
Manufacturer Part Number:
RV-8523-C3
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Country Of Origin:
Switzerland
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Micro Crystal AG
-
YTEOL:
0
-
Peak Reflow Temperature (Cel):
260
-
Qualification Status:
Not Qualified
-
Terminal Finish:
Gold Flash (Au)
Trust Checks
Manufacturer Collaborated
System Verified
Community Approved
RV-8523-C3 Overview

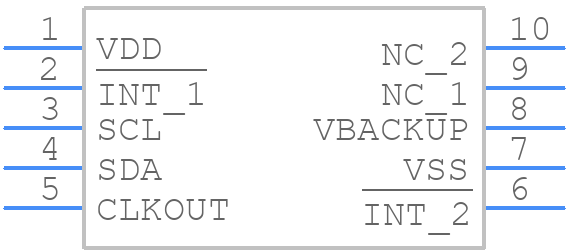

Use the download button to access the RV-8523-C3 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RV-85,
or try a keyword search, such as Timers or RTCs
