RVPX-P08VM1 - Amphenol

Description: High Speed / Modular Connectors Daughtercard, 8 Posi Module, 50 Gold, Tin

Download RVPX-P08VM1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
RVPX-P08VM1 - Amphenol - PCB symbol
click to zoom
PCB Footprints

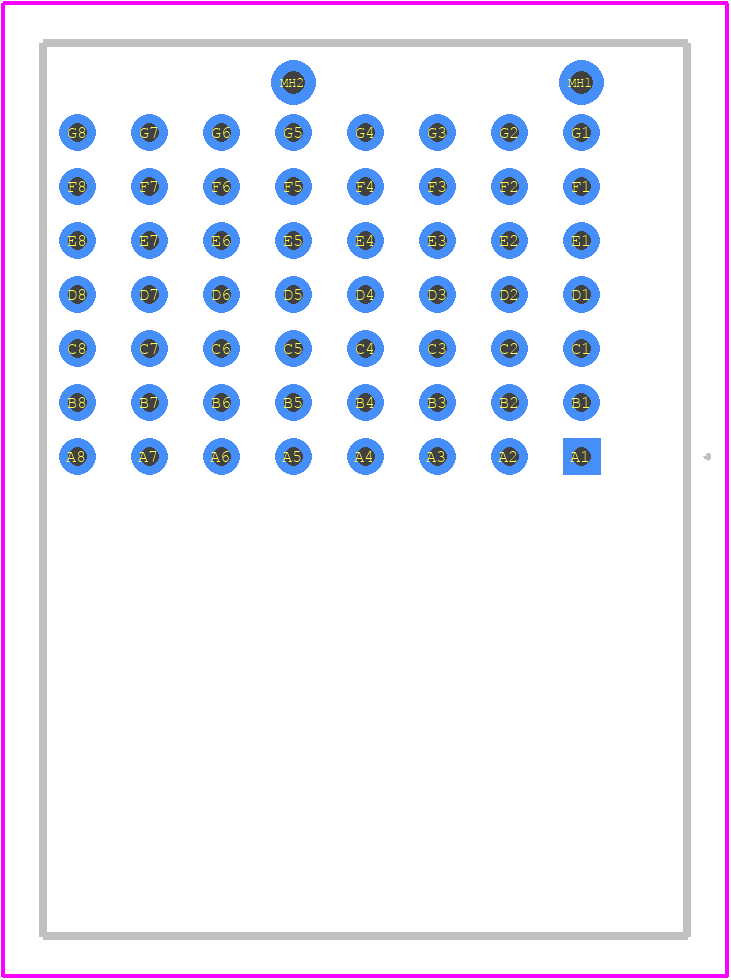

RVPX-P08VM1 - Amphenol PCB footprint - Other - Other - RVPX-P08VM1-3
click to zoom
3D Models
RVPX-P08VM1 - Amphenol - 3D model - Other - RVPX-P08VM1-3
click to zoom

RVPX-P08VM1 Details

  • Manufacturer Part Number:

    RVPX-P08VM1

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Amphenol Corporation

  • YTEOL:

    7

  • Board Mounting Option:

    COMPLIANT BOARDLOCK

  • Body Breadth:

    0.724 inch

  • Body Depth:

    0.878 inch

  • Body/Shell Style:

    PLUG

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    NOT APPLICABLE

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Style:

    BLADE PIN-SKT

  • Filter Feature:

    NO

  • Insulator Material:

    GLASS FILLED LIQUID CRYSTAL POLYMER

  • Mating Contact Pitch:

    0.071 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    7

  • Number of Rows Loaded:

    1

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -55 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    1.3462 mm

  • Plating Thickness:

    50u inch

  • Rated Current (Signal):

    1.5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.076 inch

  • Terminal Pitch:

    1.8034 mm

  • Termination Type:

    PRESS FIT

  • Total Number of Contacts:

    8

RVPX-P08VM1 Frequently Asked Questions (FAQs)

  • The recommended torque value for the screw terminals is 0.5 Nm to 1.5 Nm (0.37 lbf-in to 1.06 lbf-in). It's essential to follow this range to ensure reliable connections and prevent damage to the connector.
  • Yes, the RVPX-P08VM1 is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 standard for vibration resistance, making it suitable for use in applications such as rail, aerospace, and industrial control systems.
  • The RVPX-P08VM1 operates within a temperature range of -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
  • Yes, the RVPX-P08VM1 is part of the RVPX family of connectors, which are designed to be compatible with each other. However, it's essential to verify the specific mating connector and ensure that the keying and pinout match to ensure proper connection.
  • The RVPX-P08VM1 has an IP67 rating, which means it is protected against dust ingress and can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

RVPX-P08VM1 Overview

Use the download button to access the RVPX-P08VM1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RVPX-, or try a keyword search, such as Headers and Edge Type Connectors

About Amphenol

Amphenol Corporation is one of the largest manufacturers of interconnect products in the world. Amphenol designs, manufactures, and markets electrical, electronic, and fiber optic connectors, cable assemblies, and interconnect systems. The company serves a wide range of industries, including aerospace, automotive, telecommunications, military and defense, industrial, and consumer electronics.
