The recommended torque for the screw terminals of RZL3-1C4-L012-R is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
Yes, the RZL3-1C4-L012-R relay is designed to withstand vibrations up to 10g (IEC 60068-2-6) and is suitable for use in high-vibration environments.
The RZL3-1C4-L012-R relay has an operating temperature range of -40°C to 125°C, making it suitable for use in a wide range of applications.
Yes, the RZL3-1C4-L012-R relay is designed and certified for use in safety-critical applications, including those requiring IEC 61508 SIL 3 and ISO 26262 ASIL D certification.
The RZL3-1C4-L012-R relay has a expected lifespan of 10 million cycles, making it a reliable choice for long-term use in demanding applications.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
RZL3-1C4-L012-R Overview

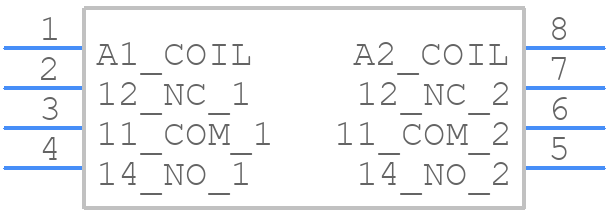

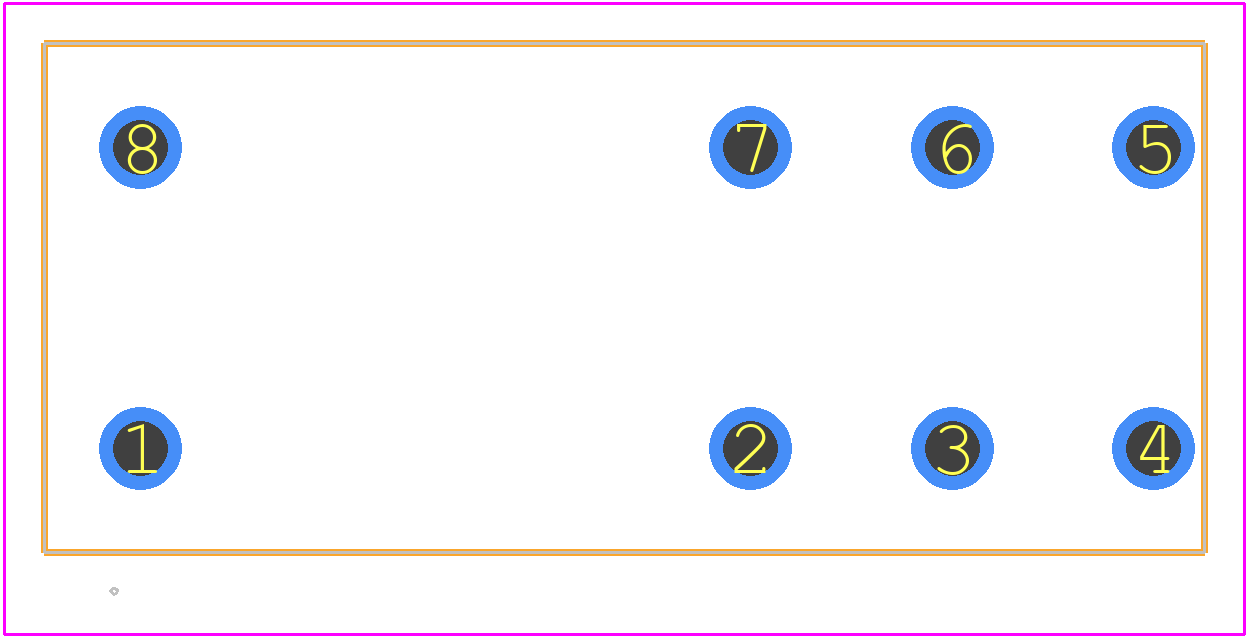

Use the download button to access the RZL3-1C4-L012-R schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like RZL3-,
or try a keyword search, such as Power/Signal Relays
