S-5715ECDL1-M3T1U - SII Semiconductor

Description: Board Mount Hall Effect / Magnetic Sensors Hall Sensor

Download S-5715ECDL1-M3T1U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

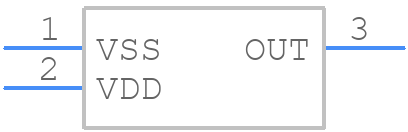

S-5715ECDL1-M3T1U - SII Semiconductor - PCB symbol
click to zoom
PCB Footprints
S-5715ECDL1-M3T1U - SII Semiconductor PCB footprint - SOT23 (3-Pin) - SOT23 (3-Pin) - MP003-C-P-SD-1.1
click to zoom
3D Models
S-5715ECDL1-M3T1U - SII Semiconductor - 3D model - SOT23 (3-Pin) - MP003-C-P-SD-1.1
click to zoom

S-5715ECDL1-M3T1U Details

  • Manufacturer Part Number:

    S-5715ECDL1-M3T1U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23, 3 PIN

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ABLIC Inc.

  • YTEOL:

    7.16

  • Additional Feature:

    ITS ALSO OPERATES IN -3.7 TO -1.4 MT MAGNETIC RANGE AND 3.0 MT SENSITIVITY

  • Body Breadth:

    1.6 mm

  • Body Height:

    1.3 mm

  • Body Length or Diameter:

    2.9 mm

  • Housing:

    PLASTIC

  • Hysteresis:

    0.8 mT

  • JESD-609 Code:

    e3

  • Magnetic Field Range-Max:

    4 mT

  • Magnetic Field Range-Min:

    1.1 mT

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    3

  • Operating Current-Max:

    2 mA

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Range:

    0.40-4.60V

  • Output Type:

    DIGITAL OUTPUT

  • Package Shape/Style:

    RECTANGULAR

  • Sensors/Transducers Type:

    MAGNETIC FIELD SENSOR,HALL EFFECT

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin (Sn)

  • Termination Type:

    SOLDER

S-5715ECDL1-M3T1U Frequently Asked Questions (FAQs)

  • A 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric is recommended for input decoupling, placed as close to the VIN pin as possible.
  • Use a 10uF to 22uF ceramic capacitor with an X5R or X7R dielectric for output decoupling, and ensure the output voltage is measured at the output capacitor's connection point.
  • The maximum ambient temperature for reliable operation is 105°C, but it's recommended to operate the device within 85°C for optimal performance and longevity.
  • Yes, the S-5715ECDL1-M3T1U is designed to withstand vibrations up to 10G, but it's recommended to follow proper PCB design and mounting guidelines to ensure reliable operation.
  • Use the formula: Pd = (VIN - VOUT) x IOUT. Then, calculate the junction temperature using the thermal resistance (Rth) and power dissipation: Tj = Ta + (Rth x Pd).
