S-8225AAA-TCT1U - ABLIC Inc.

Description: igh-accuracy voltage detection function for each cell Overcharge detection voltage n (n = 1 to 5) 3.500 V to 4.400 V (50 mV step) Accuracy ±20 mV (Ta = +25°C), ±30 mV (Ta = 0°C to +60°C) Overcharge release voltage n (n = 1 to 5) 3.300 V to 4.400 V*1 Accuracy ±50 mV Overdischarge detection voltage n (n = 1 to 5) 2.000 V to 3.200 V (100 mV step) Accuracy ±80 mV

Download S-8225AAA-TCT1U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

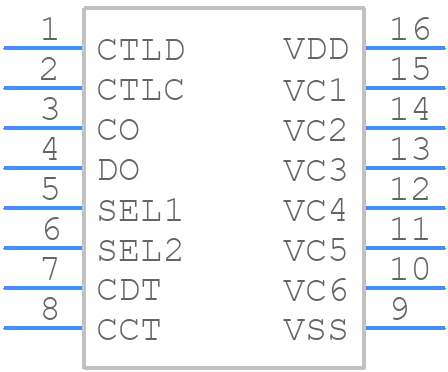

S-8225AAA-TCT1U - ABLIC Inc. - PCB symbol
click to zoom
PCB Footprints

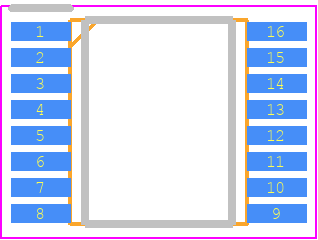

S-8225AAA-TCT1U - ABLIC Inc. PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP16-A-PKG
click to zoom
3D Models
S-8225AAA-TCT1U - ABLIC Inc. - 3D model - Small Outline Packages - TSSOP16-A-PKG
click to zoom

S-8225AAA-TCT1U Details

  • Manufacturer Part Number:

    S-8225AAA-TCT1U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ABLIC Inc.

  • YTEOL:

    8

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    5.1 mm

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    26 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

S-8225AAA-TCT1U Frequently Asked Questions (FAQs)

  • ABLIC recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stable output voltage during startup, ABLIC recommends adding a 1uF ceramic capacitor between the VIN pin and GND, and a 10uF electrolytic capacitor between the VOUT pin and GND.
  • The maximum allowed input voltage ripple is 200mVp-p. Exceeding this value may affect the regulator's stability and output voltage accuracy.
  • The S-8225AAA-TCT1U is rated for operation up to 125°C. However, ABLIC recommends derating the output current and input voltage to ensure reliable operation in high-temperature environments.
  • Power dissipation can be calculated using the formula: Pd = (VIN - VOUT) x IOUT + VIN x IQ, where IQ is the quiescent current. ABLIC recommends using a thermal design calculator or consulting the application note for more information.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S-8225AAA-TCT1U Overview

Use the download button to access the S-8225AAA-TCT1U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S-822, or try a keyword search, such as Power Management Circuits
