ABLIC recommends a 4-layer PCB with a solid ground plane and a separate power plane for the IC. The input and output capacitors should be placed as close to the IC as possible, and the PCB traces should be kept short and wide to minimize noise and EMI.
To ensure stability, ABLIC recommends using a minimum output capacitance of 10uF, and a maximum equivalent series resistance (ESR) of 1 ohm. Additionally, the output voltage should be decoupled with a 10nF ceramic capacitor.
The maximum ambient temperature range for the S-8244AAFFM-CEFT2U is -40°C to +125°C. However, the device should be derated for temperatures above 85°C to ensure reliable operation.
Yes, the S-8244AAFFM-CEFT2U is designed to withstand vibrations up to 10G. However, ABLIC recommends following the recommended PCB layout and mounting guidelines to ensure reliable operation in high-vibration environments.
The recommended input voltage range for the S-8244AAFFM-CEFT2U is 2.5V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S-8244AAFFM-CEFT2U Overview

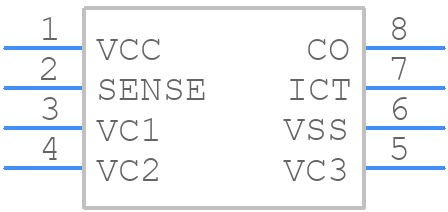

Use the download button to access the S-8244AAFFM-CEFT2U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S-824,
or try a keyword search, such as Power Management Circuits
