S-8245AAA-FGT1U - ABLIC Inc.

Description: Battery Management BATTERY PROTECTION IC FOR 3-5 CELL PACK

Download S-8245AAA-FGT1U Model

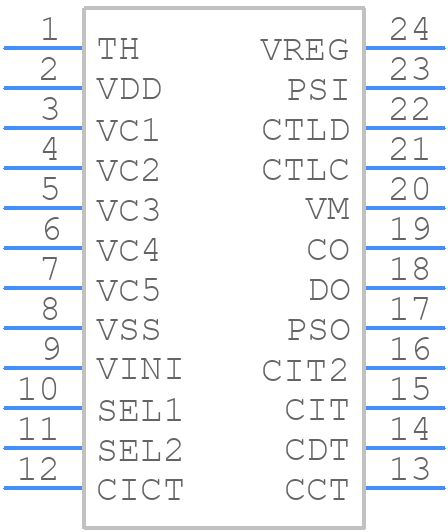

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

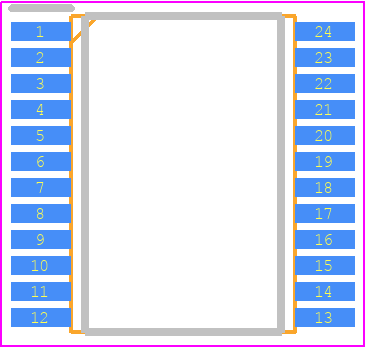

S-8245AAA-FGT1U - ABLIC Inc. PCB footprint - Small Outline Packages - Small Outline Packages - ssop24
click to zoom
3D Models
S-8245AAA-FGT1U - ABLIC Inc.  - 3D model - Small Outline Packages - ssop24
click to zoom

S-8245AAA-FGT1U Details

  • Manufacturer Part Number:

    S-8245AAA-FGT1U

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SSOP-24

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Date Of Intro:

    2018-05-16

  • Manufacturer:

    ABLIC Inc.

  • YTEOL:

    6.74

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY MONITOR

  • JESD-30 Code:

    R-PDSO-G24

  • JESD-609 Code:

    e3

  • Length:

    7.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSSOP24,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Seated Height-Max:

    1.4 mm

  • Supply Current-Max (Isup):

    0.02 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.10V

  • Width:

    5.6 mm

S-8245AAA-FGT1U Frequently Asked Questions (FAQs)

  • Although the datasheet specifies an input voltage range of 2.2V to 6.0V, it's recommended to limit the input voltage to 5.5V or less to ensure stable operation and prevent damage to the device.
  • To ensure stability, it's essential to use a suitable output capacitor with a capacitance value between 1.0μF and 10μF, and an ESR (Equivalent Series Resistance) of 100mΩ or less. Additionally, the output capacitor should be placed as close to the VOUT pin as possible.
  • The datasheet recommends a minimum input capacitance of 1.0μF, but it's recommended to use a 2.2μF or larger capacitor to ensure stable operation, especially in applications with high input voltage ripple or noise.
  • While the device can operate up to 105°C, it's essential to consider the derating of the output current and power dissipation at high temperatures. Be sure to check the thermal design and ensure that the device is operated within the recommended specifications to prevent overheating and damage.
  • The power dissipation (PD) can be calculated using the formula: PD = (VIN - VOUT) x IOUT + VIN x IQ, where IQ is the quiescent current. Be sure to check the datasheet for the IQ value and calculate the PD to ensure the device is operated within the recommended specifications.
