ABLIC Inc. recommends a 4-layer PCB with a solid ground plane and a separate power plane for the VCC and VOUT pins. Additionally, keep the input and output capacitors close to the IC and use short, wide traces to minimize inductance and resistance.
To ensure stable output voltage regulation, make sure to decouple the input voltage with a capacitor (e.g., 10uF) and use an output capacitor (e.g., 22uF) with a low ESR. Also, keep the input voltage within the recommended range (2.5V to 5.5V) and avoid sudden changes in input voltage.
The S-8261AAXMD-G2XT2U is rated for operation up to 105°C ambient temperature, but it's recommended to derate the output current and voltage according to the thermal derating curve provided in the datasheet to ensure reliable operation.
Yes, the S-8261AAXMD-G2XT2U is designed to withstand vibrations up to 10G (10Hz to 2kHz) and can be used in high-vibration environments. However, it's essential to ensure proper PCB mounting and secure the device to prevent mechanical stress.
To prevent ESD damage, handle the device by the body or pins, avoid touching the pins, and use an anti-static wrist strap or mat during assembly. Also, ensure that the PCB and components are properly grounded during assembly and testing.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S-8261AAXMD-G2XT2U Overview

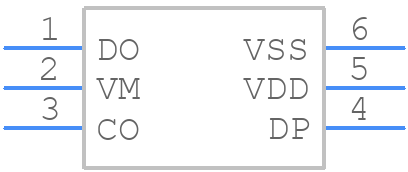

Use the download button to access the S-8261AAXMD-G2XT2U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S-826,
or try a keyword search, such as Power Management Circuits
