S-8261ABKMD-G3KT2G - ABLIC Inc.

Description: BATTERY PROTECTION IC WITH CHARGE-DISCHARGE CONTROL FUNCTION FOR 1-CELL PACK

Download S-8261ABKMD-G3KT2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

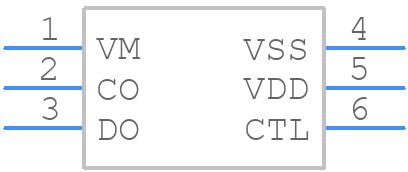

S-8261ABKMD-G3KT2G - ABLIC Inc. - PCB symbol
click to zoom
PCB Footprints
S-8261ABKMD-G3KT2G - ABLIC Inc. PCB footprint - SO Transistor Flat Lead - SO Transistor Flat Lead - SNT-6A-A-PKG
click to zoom
3D Models
S-8261ABKMD-G3KT2G - ABLIC Inc. - 3D model - SO Transistor Flat Lead - SNT-6A-A-PKG
click to zoom

S-8261ABKMD-G3KT2G Details

  • Manufacturer Part Number:

    S-8261ABKMD-G3KT2G

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT-23

  • Package Description:

    SOT-23, 6 PIN

  • Pin Count:

    6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    ABLIC Inc.

  • YTEOL:

    6.25

  • Additional Feature:

    DETECTION THRESHOLD VOLTAGE IS 4.1V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-30 Code:

    R-PDSO-G6

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.35 mm

  • Supply Voltage-Max (Vsup):

    8 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4.1V

  • Width:

    1.6 mm
