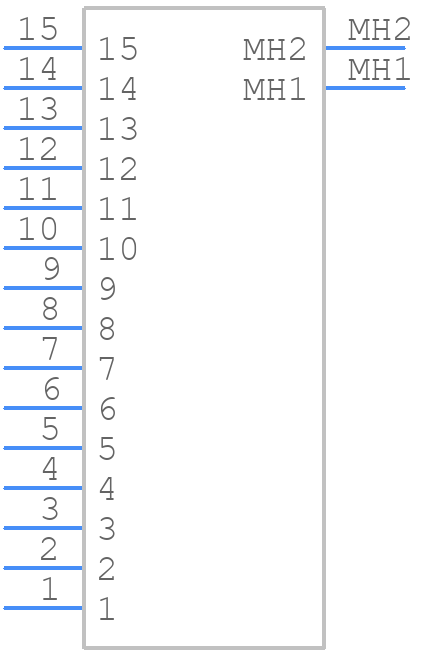

Symbol

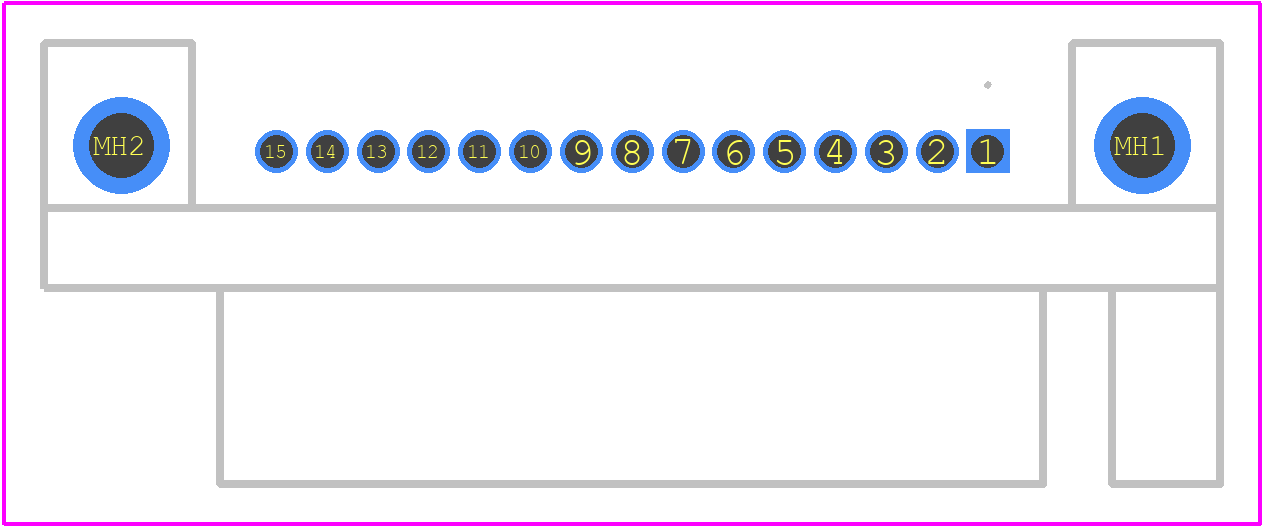

PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for S150-MXA5T-002
- Part Number S150-MXA5T-002
- Manufacturer Bestcreate
- Pin Count 17
- Part Category Connector
- Package Category Other
- Footprint Name Other - S150-MXA5T-002-2
- Released Date Jul 22, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
S150-MXA5T-002 Details
-
Manufacturer Part Number:
S150-MXA5T-002
-
Manufacturer:
Dongguan Bestcreate Technology Ltd
Trust Checks
Community Provided
System Verified
Community Approved
S150-MXA5T-002 Overview
Use the download button to access the S150-MXA5T-002 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like S150-,
or try a keyword search, such as Ceramic Capacitors
