A recommended PCB layout is to use a solid ground plane on the bottom layer, and to keep the input and output traces as short as possible. Additionally, it's recommended to use a common mode choke or a ferrite bead on the input line to reduce EMI.
The S22P025S05 has a maximum junction temperature of 125°C. To ensure proper cooling, it's recommended to attach a heat sink to the device, and to provide adequate airflow around the device. The thermal resistance of the heat sink should be less than 10°C/W.
The S22P025S05 has a maximum allowable voltage deviation of ±10% of the nominal input voltage. Exceeding this deviation may affect the device's performance and reliability.
The S22P025S05 is rated for operation up to 85°C ambient temperature. However, the device's performance and reliability may be affected at high temperatures. It's recommended to derate the device's output power and to ensure proper cooling in high-temperature environments.
To troubleshoot issues with the S22P025S05, first check the input voltage and current, and ensure that they are within the recommended specifications. Next, check the output voltage and current, and ensure that they are within the expected range. If the issue persists, check the PCB layout and ensure that it meets the recommended layout guidelines.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S22P025S05 Overview

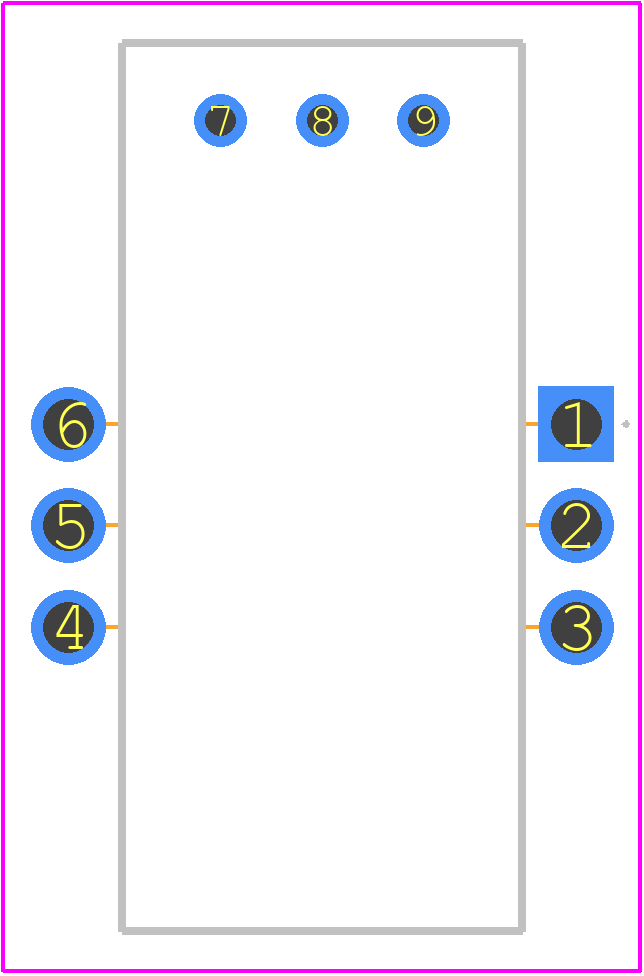

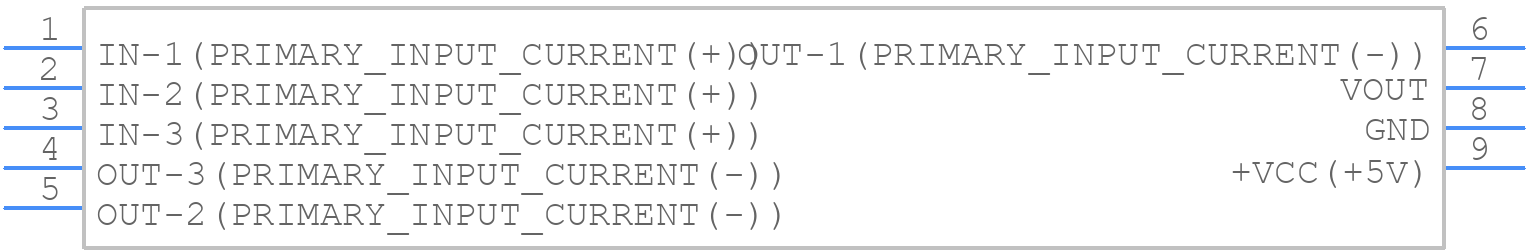

Use the download button to access the S22P025S05 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like S22P0,
or try a keyword search, such as Other Sensors/Transducers
