S25FL064LABMFA010 - Infineon

Description: NOR Flash Nor

Download S25FL064LABMFA010 Model

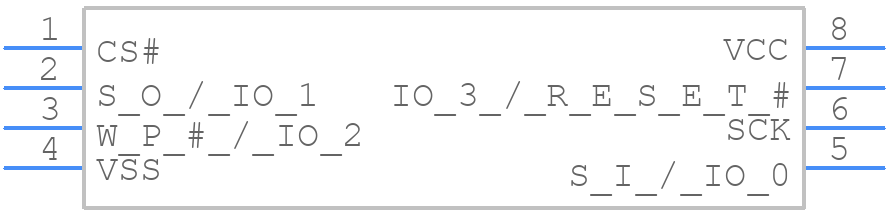

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL064LABMFA010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8-Lead, 208 mil Body Width (SOC008)_
click to zoom

S25FL064LABMFA010 Details

  • Manufacturer Part Number:

    S25FL064LABMFA010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO HAVE X1 MEMORY WIDTH

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    108 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.28 mm

S25FL064LABMFA010 Frequently Asked Questions (FAQs)

  • The S25FL064LABMFA010 can operate from -40°C to +125°C, making it suitable for industrial and automotive applications.
  • The S25FL064LABMFA010 can handle up to 100,000 erase cycles, making it suitable for applications that require frequent data updates.
  • The typical programming time for the S25FL064LABMFA010 is around 3-5 milliseconds per 256-byte page, depending on the operating frequency and voltage.
  • Yes, the S25FL064LABMFA010 supports simultaneous read and write operations, allowing for improved system performance and efficiency.
  • The WP# (Write Protect) pin is used to prevent accidental writes to the device. When the WP# pin is low, the device is in write-protect mode, and no writes are allowed.
