S25FL064LABMFA011 - Infineon

Description: NOR Flash IC 64M FLASH MEMORY

Download S25FL064LABMFA011 Model

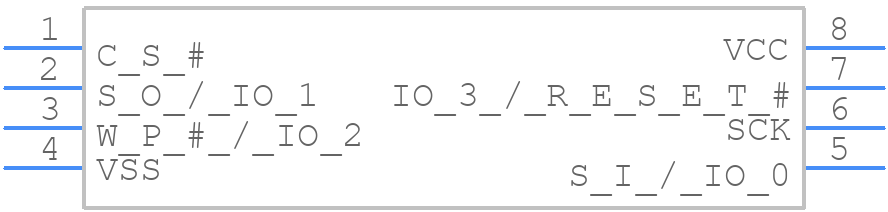

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL064LABMFA011 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 8-lead, 208 mil body width (SOC008)
click to zoom
3D Models
S25FL064LABMFA011 - Infineon  - 3D model - Small Outline Packages - SOIC 8-lead, 208 mil body width (SOC008)
click to zoom

S25FL064LABMFA011 Details

  • Manufacturer Part Number:

    S25FL064LABMFA011

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    26 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Additional Feature:

    IT ALSO HAVE X1 MEMORY WIDTH

  • Alternate Memory Width:

    2

  • Clock Frequency-Max (fCLK):

    108 MHz

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    5.28 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    2.16 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    5.28 mm

S25FL064LABMFA011 Frequently Asked Questions (FAQs)

  • The S25FL064LABMFA011 can operate from -40°C to +125°C, making it suitable for industrial and automotive applications.
  • The HOLD# pin should be driven high or left floating during low-power modes to ensure the device remains in a low-power state. Driving it low may cause the device to exit low-power mode.
  • The S25FL064LABMFA011 supports clock frequencies up to 104 MHz. However, it's recommended to use a clock frequency of 50 MHz or lower for optimal performance and power consumption.
  • To perform a sector erase operation, send the Sector Erase command (0x20) followed by the sector address. The device will then erase the entire sector. Make sure to follow the recommended erase procedure and timing in the datasheet.
  • The Write Enable Latch (WEL) bit is used to enable or disable write operations to the device. When WEL is set, the device is write-enabled, and when it's cleared, the device is write-protected. This bit is used to prevent accidental writes to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S25FL064LABMFA011 Overview

Use the download button to access the S25FL064LABMFA011 schematic symbol, PCB footprint, and 3D model.
