S25FL116K0XMFI040 - Infineon

Description: CYPRESS - INFINEON TECHNOLOGIES - S25FL116K0XMFI040 - Flash Memory, Serial NOR, 16 Mbit, 2M x 8bit, SPI, SOIC, 8 Pins

Download S25FL116K0XMFI040 Model

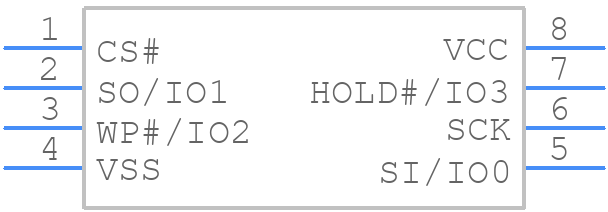

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL116K0XMFI040 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - S25FL116K0XMFI040
click to zoom
3D Models
S25FL116K0XMFI040 - Infineon  - 3D model - Small Outline Packages - S25FL116K0XMFI040
click to zoom

S25FL116K0XMFI040 Details

  • Manufacturer Part Number:

    S25FL116K0XMFI040

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    108 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Memory Density:

    16777216 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    2097152 words

  • Number of Words Code:

    2000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    2MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000005 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    3.9 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S25FL116K0XMFI040 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the S25FL116K0XMFI040 is 2.7V to 3.6V.
  • The hold pin (HOLD#) should be pulled high during power-up and power-down sequences to prevent any unwanted commands from being executed.
  • The Write Protection (WP#) pin is used to prevent accidental writes to the device. To enable write protection, pull the WP# pin low. To disable write protection, pull the WP# pin high or leave it floating.
  • The optimal clock frequency depends on the specific application requirements. The S25FL116K0XMFI040 supports clock frequencies up to 104 MHz. It is recommended to consult the datasheet and application notes for guidance on selecting the optimal clock frequency.
  • The S25FL116K0XMFI040 is a high-performance, low-power flash memory device with a specific set of features and specifications. It is recommended to consult the datasheet and compare the features and specifications with other similar devices to determine the best fit for the application.
