S25FL116K0XNFV010 - Infineon

Description: NOR Flash Serial-SPI 3V/3.3V 16M-bit 2M x 8 7ns Tray

Download S25FL116K0XNFV010 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S25FL116K0XNFV010 model

Email notifications will be applied after download.

Send part feedback

Symbol

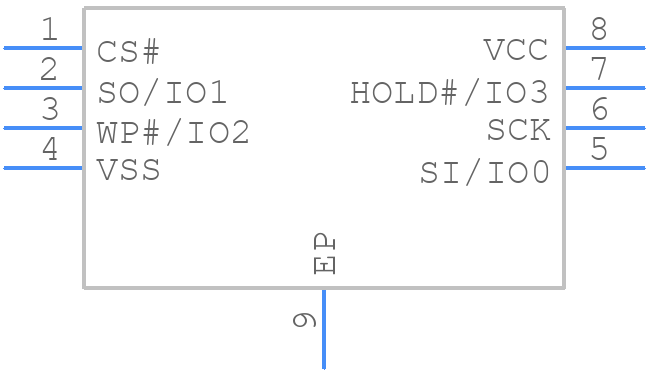

S25FL116K0XNFV010 - Infineon - PCB symbol

PCB Footprints

S25FL116K0XNFV010 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - WND008 — 8-Contact WSON 5 mm  6 mm

3D Models

S25FL116K0XNFV010 - Infineon - 3D model - Small Outline No-lead - WND008 — 8-Contact WSON 5 mm  6 mm

Datasheet Download Datasheet
Stock & Prices Price & Stock for S25FL116K0XNFV010
Part Number S25FL116K0XNFV010
Manufacturer Infineon
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - WND008 — 8-Contact WSON 5 mm  6 mm
Released Date Jun 21, 2018
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

S25FL116K0XNFV010 Details

Manufacturer Part Number:
S25FL116K0XNFV010
Part Life Cycle Code:
Obsolete
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Factory Lead Time:
4 Weeks
