Part Image

S25FL128LAGMFI003 - Infineon

Description: 256Mbit (32Mbyte)/128Mbit (16Mbyte), 3.0 V FL-L Flash Memory

Download S25FL128LAGMFI003 Model

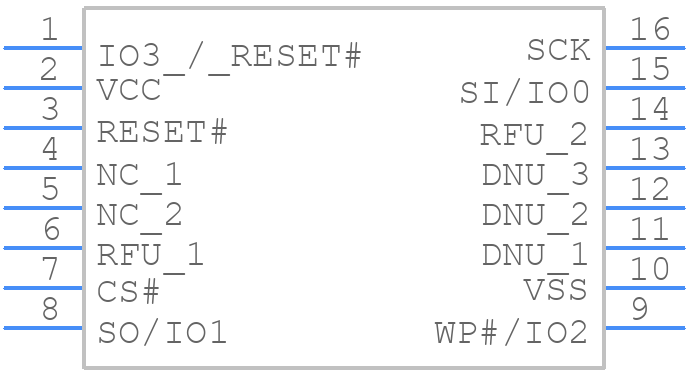

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL128LAGMFI003 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
click to zoom
3D Models
S25FL128LAGMFI003 - Infineon  - 3D model - Small Outline Packages - 16-Lead Wide Plastic Small Outline Package (300-mil Body Width)
click to zoom

S25FL128LAGMFI003 Details

  • Manufacturer Part Number:

    S25FL128LAGMFI003

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOIC-16

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G16

  • Length:

    10.3 mm

  • Memory Density:

    134217728 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Number of Words:

    16777216 words

  • Number of Words Code:

    16000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    16MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP16,.4

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    2.65 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00002 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 65nm

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    7.5 mm

  • Write Protection:

    HARDWARE

S25FL128LAGMFI003 Frequently Asked Questions (FAQs)

  • The S25FL128LAGMFI003 can operate from -40°C to +125°C, with a maximum junction temperature of 150°C.
  • The S25FL128LAGMFI003 is rated for a minimum of 100,000 erase cycles per sector, and 10,000 erase cycles per block.
  • The typical programming time for a page is around 1.2 ms, with a maximum time of 3.2 ms.
  • Yes, the S25FL128LAGMFI003 is suitable for use in MCP or SiP designs, but it's recommended to consult with Infineon's application engineers for specific guidance.
  • No, the S25FL128LAGMFI003 is a parallel NOR flash device and is not compatible with the JEDEC eMMC standard, which is used for embedded MMC devices.
