S25FL128SAGNFI001 - Infineon

Description: Flash,128Mbit,QSPI,133MHz,3V,WSON8 S25FL128SAGNFI001, SPI NOR Flash Memory, 128M x 1 bit, 32M x 4 bit, 64M x 2 bit 128Mbit, 2.7 → 3.6 V, 8-Pin

Download S25FL128SAGNFI001 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S25FL128SAGNFI001 model

Email notifications will be applied after download.

Send part feedback

Symbol

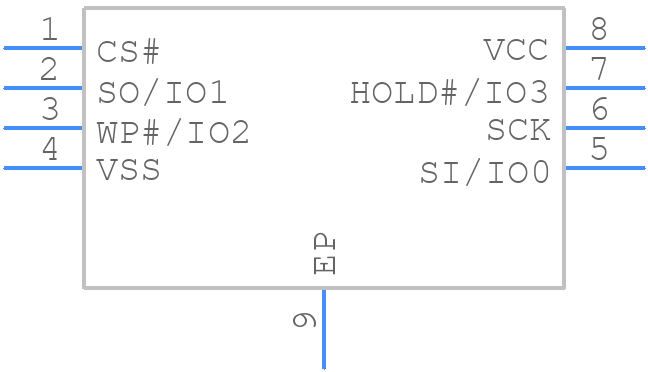

S25FL128SAGNFI001 - Infineon - PCB symbol

PCB Footprints

S25FL128SAGNFI001 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - ADS7843E/2K5

3D Models

S25FL128SAGNFI001 - Infineon - 3D model - Small Outline No-lead - ADS7843E/2K5

Datasheet Download Datasheet
Stock & Prices Price & Stock for S25FL128SAGNFI001
Part Number S25FL128SAGNFI001
Manufacturer Infineon
Pin Count 9
Part Category Integrated Circuit
Package Category Small Outline No-lead
Footprint Name Small Outline No-lead - ADS7843E/2K5
Released Date Apr 25, 2019
Last Modified Date Jan 25, 2024 9:25 PM UTC
Pinout / Pin List Click Here (Member Only)

S25FL128SAGNFI001 Details

Manufacturer Part Number:
S25FL128SAGNFI001
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Taiwan, Thailand
ECCN Code:
EAR99
HTS Code:
8542.32.00.51
Factory Lead Time:
53 Weeks, 1 Day
Manufacturer:
Infineon Technologies AG
YTEOL:
10
Memory IC Type:
FLASH
Qualification Status:
Not Qualified

S25FL128SAGNFI001 Frequently Asked Questions (FAQs)

The maximum operating frequency of the S25FL128SAGNFI001 is 104 MHz.
The S25FL128SAGNFI001 can withstand a minimum of 100,000 erase cycles.
The data retention period of the S25FL128SAGNFI001 is a minimum of 20 years at a temperature of 25°C.
Yes, the S25FL128SAGNFI001 is compatible with the SPI protocol, as well as Dual SPI and Quad SPI protocols.
The S25FL128SAGNFI001 comes in a 24-ball BGA package.

Trust Checks

Community Provided

System Verified

Community Approved

S25FL128SAGNFI001 Overview

Use the download button to access the S25FL128SAGNFI001 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
