S25FL128SAGNFI013 - Infineon

Description: NOR Flash 128Mb, 3V, 133Mhz Serial Flash

Download S25FL128SAGNFI013 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

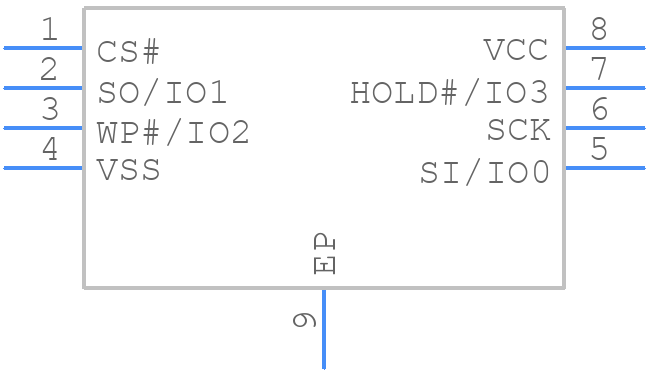

S25FL128SAGNFI013 - Infineon - PCB symbol
click to zoom
PCB Footprints
S25FL128SAGNFI013 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - SON
click to zoom
3D Models
S25FL128SAGNFI013 - Infineon - 3D model - Small Outline No-lead - SON
click to zoom

S25FL128SAGNFI013 Details

  • Manufacturer Part Number:

    S25FL128SAGNFI013

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Memory IC Type:

    FLASH

  • Moisture Sensitivity Level:

    3

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Technology:

    65 nm

  • Terminal Finish:

    Matte Tin (Sn)

  • Time@Peak Reflow Temperature-Max (s):

    30

S25FL128SAGNFI013 Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S25FL128SAGNFI013 is 104 MHz.
  • The S25FL128SAGNFI013 can withstand a minimum of 100,000 erase cycles.
  • The S25FL128SAGNFI013 has a data retention period of at least 20 years.
  • Yes, the S25FL128SAGNFI013 is compatible with the SPI protocol, as well as Dual SPI and Quad SPI protocols.
  • The operating voltage range of the S25FL128SAGNFI013 is 2.7V to 3.6V.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

S25FL128SAGNFI013 Overview

Use the download button to access the S25FL128SAGNFI013 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S25FL, or try a keyword search, such as Flash Memories
