S25FL256LAGNFB010 - Infineon

Description: NOR Flash Serial (SPI, Dual SPI, Quad SPI) 3V/3.3V 256M-bit 256M/128M/64M x 1/2-bit/4-bit 8ns Automotive 8-Pin WSON EP Tray

Download S25FL256LAGNFB010 Model
Schematic

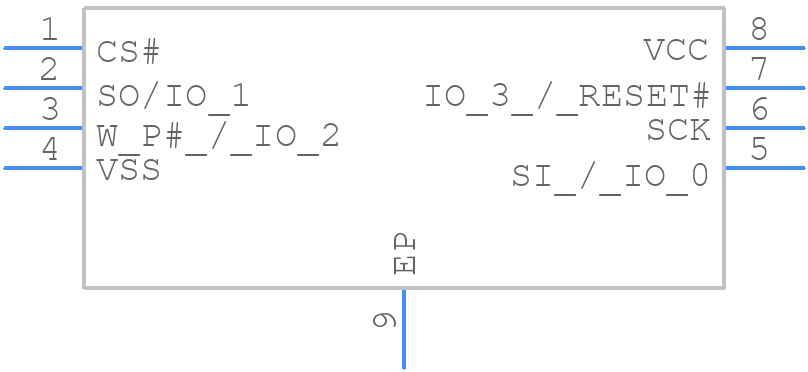

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25FL256LAGNFB010 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - WND008 - 8-Contact WSON 5 mm x 6 mm
click to zoom
3D Models
S25FL256LAGNFB010 - Infineon  - 3D model - Small Outline No-lead - WND008 - 8-Contact WSON 5 mm x 6 mm
click to zoom

S25FL256LAGNFB010 Details

  • Manufacturer Part Number:

    S25FL256LAGNFB010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    WSON-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    7

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-N8

  • Length:

    6 mm

  • Memory Density:

    268435456 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HWSON

  • Package Equivalence Code:

    SOLCC8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.00003 A

  • Supply Current-Max:

    0.035 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS, 65nm

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5 mm

  • Write Protection:

    HARDWARE

S25FL256LAGNFB010 Frequently Asked Questions (FAQs)

  • The S25FL256LAGNFB010 can operate from -40°C to +125°C, making it suitable for industrial and automotive applications.
  • The S25FL256LAGNFB010 can handle up to 100,000 erase cycles, making it suitable for applications that require frequent data updates.
  • The S25FL256LAGNFB010 has a data retention period of 20 years at 125°C, ensuring that stored data remains valid for an extended period.
  • Yes, the S25FL256LAGNFB010 can be used in an MCP configuration, allowing it to be combined with other devices such as microcontrollers or other memory devices.
  • The typical programming time for the S25FL256LAGNFB010 is around 3-5 seconds for a full 256 Mbit erase and program cycle.
