The S25FS512SFABHB210 has an operating temperature range of -40°C to 125°C, making it suitable for industrial and automotive applications.
The S25FS512SFABHB210 has a minimum of 100,000 erase cycles, ensuring reliable data storage and retrieval over its lifespan.
The typical programming time for the S25FS512SFABHB210 is around 3-5 milliseconds per 256-byte page, depending on the operating conditions and system configuration.
Yes, the S25FS512SFABHB210 supports simultaneous read and write operations, allowing for efficient data transfer and processing.
The WP# (Write Protect) pin is used to prevent accidental writes to the flash memory. When the WP# pin is low, the entire memory array is protected from writes.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S25FS512SFABHB210 Overview

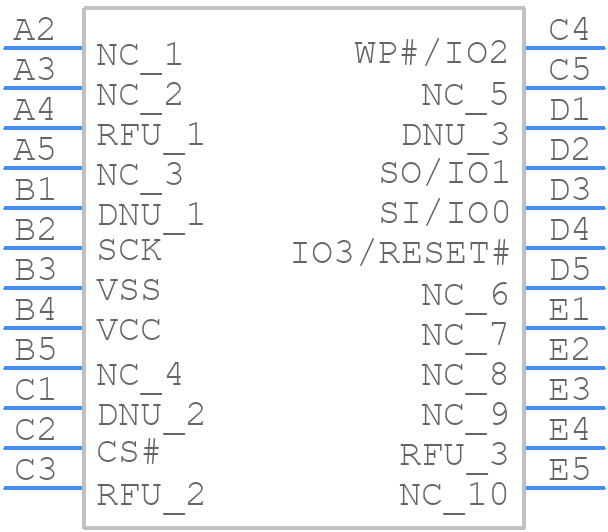

Use the download button to access the S25FS512SFABHB210 schematic symbol, PCB footprint, and 3D model.
