S25HL512TDPNHI010 - Infineon

Description: NOR Flash SEMPER

Download S25HL512TDPNHI010 Model

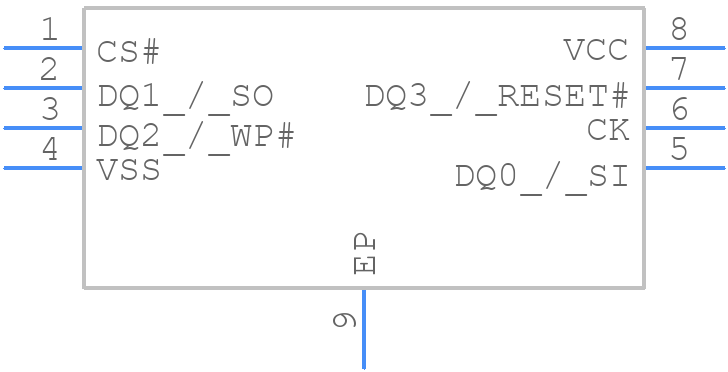

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S25HL512TDPNHI010 - Infineon PCB footprint - Small Outline No-lead - Small Outline No-lead - PG-WSON-8.
click to zoom
3D Models
S25HL512TDPNHI010 - Infineon  - 3D model - Small Outline No-lead - PG-WSON-8.
click to zoom

S25HL512TDPNHI010 Details

  • Manufacturer Part Number:

    S25HL512TDPNHI010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    12

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    25

  • Endurance:

    1280000 Write/Erase Cycles

  • JESD-30 Code:

    R-XDSO-N8

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    0.8 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00034 A

  • Supply Current-Max:

    0.069 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE

S25HL512TDPNHI010 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the S25HL512TDPNHI010 is -40°C to +85°C, with a maximum junction temperature of 125°C.
  • During power-up, the HOLD# pin should be kept high until the power supply has reached its operating voltage. During power-down, the HOLD# pin should be kept low to prevent any unwanted writes or erases.
  • The WP# pin is used to prevent accidental writes or erases to the device. When WP# is low, the device is in write-protect mode, and all write and erase operations are inhibited. When WP# is high, the device is in normal operation mode.
  • The optimal clock frequency depends on the specific application requirements and the system's clock domain. The S25HL512TDPNHI010 supports clock frequencies up to 133 MHz, but the actual frequency used should be determined based on the system's clock speed, data transfer rate, and power consumption constraints.
  • The recommended method for handling power-up and power-down sequences is to follow the guidelines outlined in the datasheet, which include ramping up the power supply voltage slowly, waiting for the device to stabilize, and then releasing the reset pin. During power-down, the power supply voltage should be ramped down slowly to prevent any unwanted writes or erases.
