S26KS512SDPBHV020 - Infineon

Description: NOR Flash Nor

Download S26KS512SDPBHV020 Model

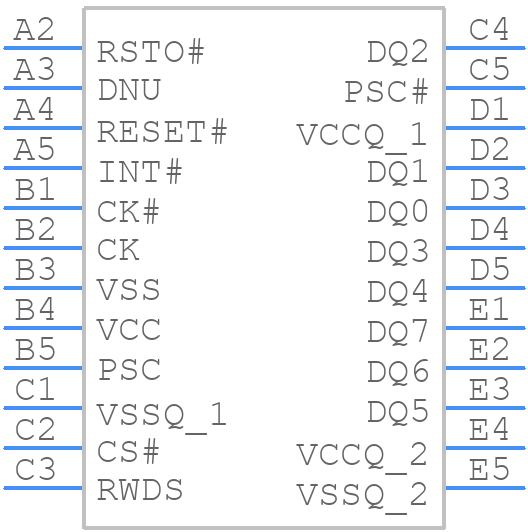

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S26KS512SDPBHV020 - Infineon PCB footprint - BGA - BGA - 24-ball 6 *8 *1.0 mm (VAA024)
click to zoom
3D Models
S26KS512SDPBHV020 - Infineon  - 3D model - BGA - 24-ball 6 *8 *1.0 mm (VAA024)
click to zoom

S26KS512SDPBHV020 Details

  • Manufacturer Part Number:

    S26KS512SDPBHV020

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Clock Frequency-Max (fCLK):

    166 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    67108864 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    1 mm

  • Serial Bus Type:

    HYPERBUS

  • Standby Current-Max:

    0.00003 A

  • Supply Current-Max:

    0.08 mA

  • Supply Voltage-Max (Vsup):

    1.95 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE

S26KS512SDPBHV020 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the S26KS512SDPBHV020 is -40°C to 125°C, as specified in the datasheet.
  • The power-up and power-down sequences for the S26KS512SDPBHV020 should be handled according to the recommended power-up and power-down sequences outlined in the datasheet, which includes a specific order for applying power to the VCC, VPP, and other pins.
  • The maximum allowed voltage on the I/O pins of the S26KS512SDPBHV020 is VCC + 0.5V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • Implementing a secure boot mechanism using the S26KS512SDPBHV020 involves using the device's built-in security features, such as the Secure Boot mechanism, which ensures that only authorized firmware is executed. This requires generating a secure boot key, storing it in the device's One-Time Programmable (OTP) memory, and configuring the boot process to use the secure boot mechanism.
  • The maximum clock frequency supported by the S26KS512SDPBHV020 is 120 MHz, as specified in the datasheet. However, the actual clock frequency may be limited by the specific application and system design.
