S29GL01GT11TFIV20 - Infineon

Description: NOR Flash NOR

Download S29GL01GT11TFIV20 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

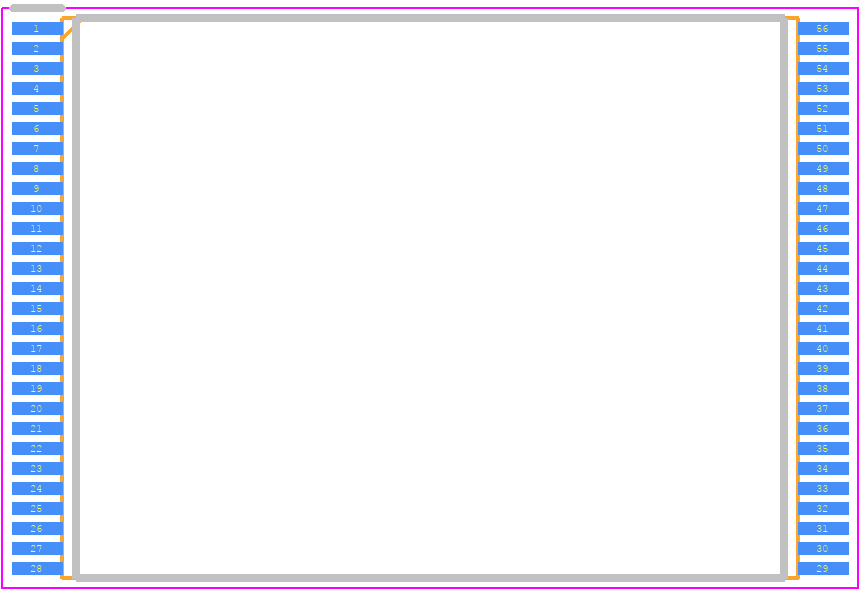

S29GL01GT11TFIV20 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 56-pin TSOP (18.4 × 14.0 × 1.2 mm) package
click to zoom
3D Models
S29GL01GT11TFIV20 - Infineon  - 3D model - Small Outline Packages - 56-pin TSOP (18.4 × 14.0 × 1.2 mm) package
click to zoom

S29GL01GT11TFIV20 Details

  • Manufacturer Part Number:

    S29GL01GT11TFIV20

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Access Time-Max:

    110 ns

  • Boot Block:

    BOTTOM/TOP

  • JESD-30 Code:

    R-PDSO-G56

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    2.7 V

  • Seated Height-Max:

    1.2 mm

  • Supply Current-Max:

    0.06 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    14 mm
