S29GL01GT12TFN010 - Infineon

Description: NOR Flash Nor

Download S29GL01GT12TFN010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

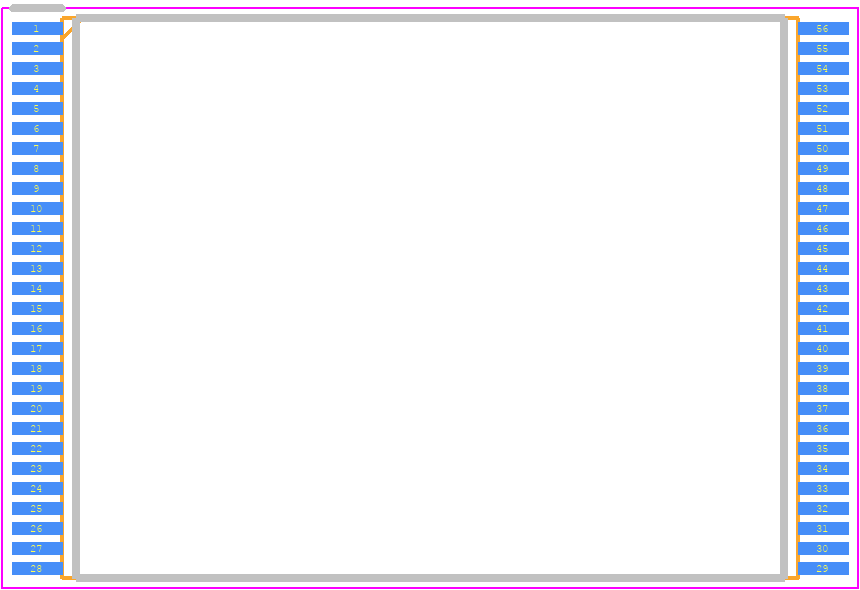

S29GL01GT12TFN010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 56-Pin Thin Small Outline Package (TSOP), 14 x 20 mm
click to zoom
3D Models
S29GL01GT12TFN010 - Infineon  - 3D model - Small Outline Packages - 56-Pin Thin Small Outline Package (TSOP), 14 x 20 mm
click to zoom

S29GL01GT12TFN010 Details

  • Manufacturer Part Number:

    S29GL01GT12TFN010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Access Time-Max:

    120 ns

  • JESD-30 Code:

    R-PDSO-G56

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    2.7 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    14 mm

S29GL01GT12TFN010 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the S29GL01GT12TFN010 is 2.7V to 3.6V.
  • The HOLD# signal should be asserted low to pause the current operation and de-asserted high to resume the operation. It's recommended to use the HOLD# signal only during read operations.
  • The WP# signal is used to protect the entire memory array or specific sectors from being written. When WP# is asserted low, the memory is write-protected.
  • The S29GL01GT12TFN010 is a 128Mb (16MB) flash memory device, organized as 2,097,152 words of 16 bits each.
  • The S29GL01GT12TFN010 has a minimum of 100,000 erase cycles per sector, and a maximum of 1,000,000 erase cycles per device.
