The maximum operating temperature range for the S29GL064A90TFIR40 is -40°C to +85°C.
The HOLD# signal should be asserted low to pause the current operation and de-asserted high to resume the operation. During hold, the device will tri-state its output and ignore any input.
The recommended power-up sequence is to apply VCC first, followed by VPP (if used), and then the clock signal. The device should be in a standby state during power-up.
The device density and configuration can be determined by reading the device ID and configuration registers. The device ID is read using the JEDEC ID command (0x9F), and the configuration registers are read using the Read Configuration Register command (0x35).
The WP# signal is used to protect the status register and the configuration registers from being written. When WP# is low, these registers are write-protected, and when WP# is high, they can be written.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S29GL064A90TFIR40 Overview

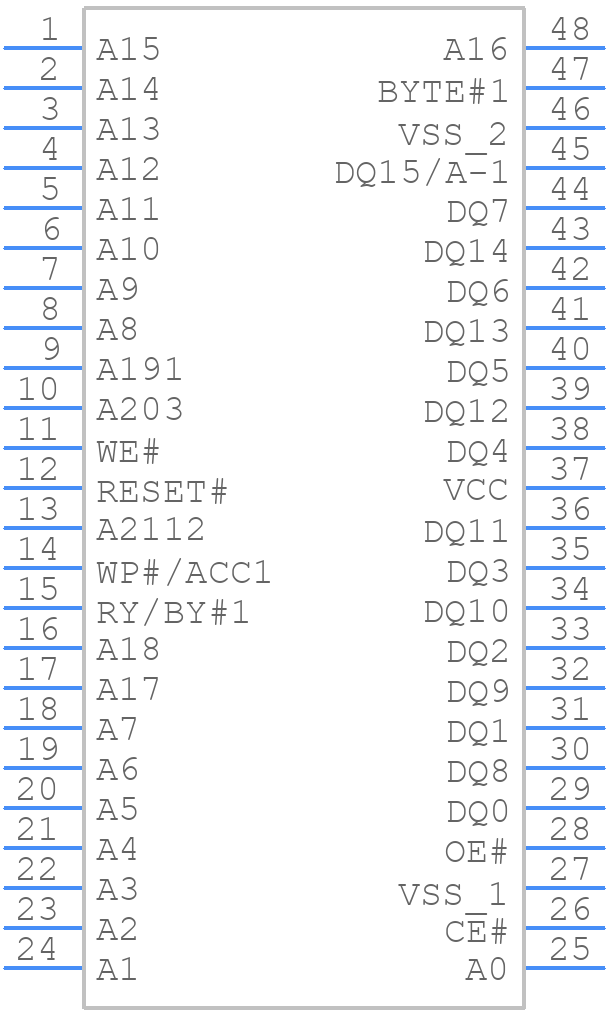

Use the download button to access the S29GL064A90TFIR40 schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like S29GL,
or try a keyword search, such as Flash Memories
