S29GL064S70TFI040 - Infineon

Description: NOR Flash 64Mb, 3.0V Parallel NOR Flash

Download S29GL064S70TFI040 Model
Schematic
symbols

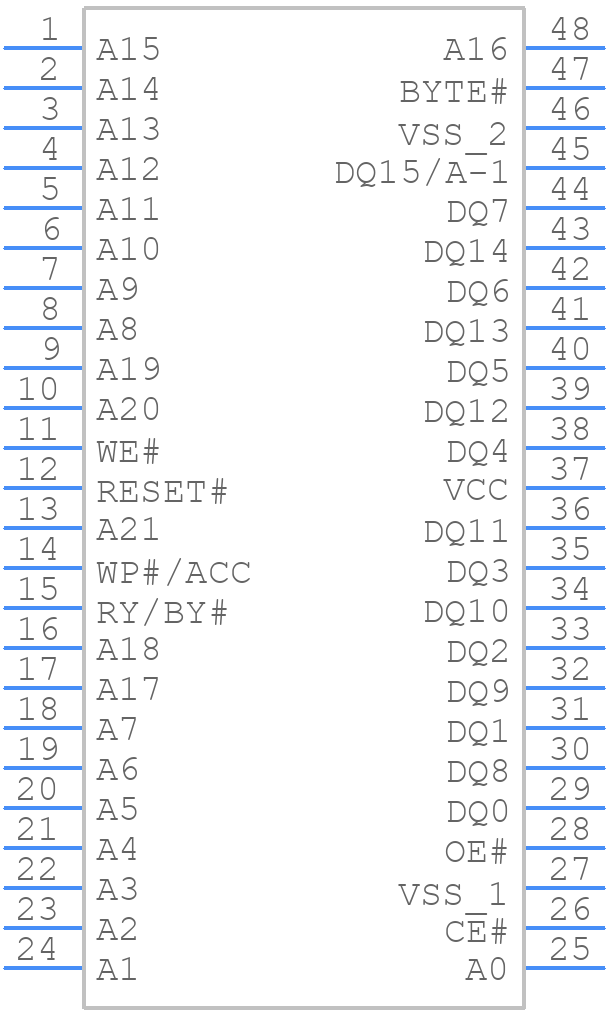

Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

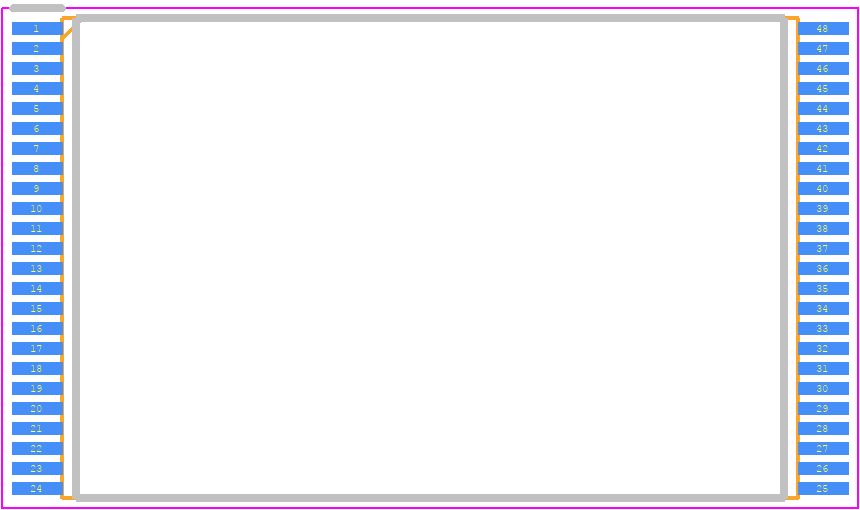

S29GL064S70TFI040 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 48-pin TSOP I (18.4 × 12 × 1.2 mm)
click to zoom
3D Models
S29GL064S70TFI040 - Infineon  - 3D model - Small Outline Packages - 48-pin TSOP I (18.4 × 12 × 1.2 mm)
click to zoom

S29GL064S70TFI040 Details

  • Manufacturer Part Number:

    S29GL064S70TFI040

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    2 Days

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Access Time-Max:

    70 ns

  • Alternate Memory Width:

    8

  • Boot Block:

    BOTTOM

  • Command User Interface:

    YES

  • Common Flash Interface:

    YES

  • Data Polling:

    YES

  • Data Retention Time-Min:

    20

  • Endurance:

    1000000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G48

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Sectors/Size:

    8,127

  • Number of Terminals:

    48

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP48,.8,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3 V

  • Ready/Busy:

    YES

  • Reverse Pinout:

    NO

  • Seated Height-Max:

    1.2 mm

  • Sector Size:

    8K,64K

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.06 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Toggle Bit:

    YES

  • Type:

    NOR TYPE

  • Width:

    12 mm

  • Write Cycle Time-Max (tWC):

    0.00006 ms

  • Write Protection:

    HARDWARE/SOFTWARE

S29GL064S70TFI040 Frequently Asked Questions (FAQs)

  • The S29GL064S70TFI040 has an operating temperature range of -40°C to 85°C.
  • The HOLD# signal should be asserted low to pause the current operation, and de-asserted high to resume the operation.
  • The WP# signal is used to prevent accidental writes to the device. When WP# is low, the device is write-protected.
  • To perform a sector erase, send the erase command (0x60) followed by the sector address, and then wait for the erase operation to complete.
  • The recommended power-up sequence is to apply VCC first, followed by VPP, and then the clock signal.
