S29GL128S90TFI020 - Spansion

S29GL128S90TFI020 Details

• Manufacturer Part Number:

  S29GL128S90TFI020

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Transferred

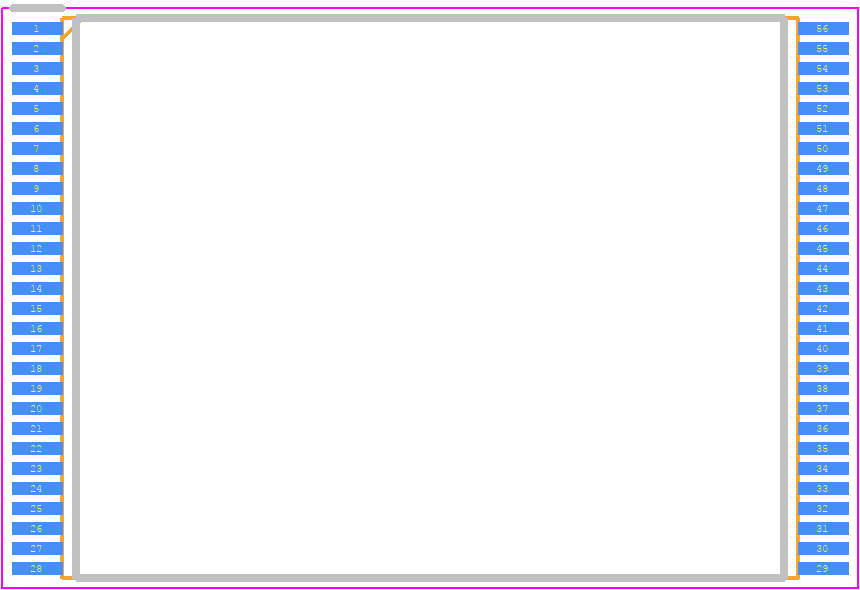

• Part Package Code:

  TSOP1

• Package Description:

  LEAD FREE, PACKAGE

• Pin Count:

  56

• ECCN Code:

  3A991.B.1.A

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Spansion

• Access Time-Max:

  90 ns

• Command User Interface:

  YES

• Common Flash Interface:

  YES

• Data Polling:

  YES

• JESD-30 Code:

  R-PDSO-G56

• Length:

  18.4 mm

• Memory Density:

  134217728 bit

• Memory IC Type:

  FLASH

• Memory Width:

  8

• Number of Functions:

  1

• Number of Sectors/Size:

  128

• Number of Terminals:

  56

• Number of Words:

  16777216 words

• Number of Words Code:

  16000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  16MX8

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP56,.8,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Page Size:

  16 words

• Parallel/Serial:

  PARALLEL

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Programming Voltage:

  2.7 V

• Qualification Status:

  Not Qualified

• Ready/Busy:

  YES

• Seated Height-Max:

  1.2 mm

• Sector Size:

  64K

• Standby Current-Max:

  0.0001 A

• Supply Current-Max:

  0.08 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  14 mm
