S29GL512S12TFIV20 - Infineon

S29GL512S12TFIV20 Details

• Manufacturer Part Number:

  S29GL512S12TFIV20

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.51

• Manufacturer:

  Infineon Technologies AG

• YTEOL:

  10

• Access Time-Max:

  120 ns

• Command User Interface:

  YES

• Common Flash Interface:

  YES

• Data Polling:

  YES

• Data Retention Time-Min:

  20

• Endurance:

  100000 Write/Erase Cycles

• JESD-30 Code:

  R-PDSO-G56

• JESD-609 Code:

  e3

• Length:

  18.4 mm

• Memory Density:

  536870912 bit

• Memory IC Type:

  FLASH

• Memory Width:

  16

• Moisture Sensitivity Level:

  3

• Number of Functions:

  1

• Number of Sectors/Size:

  512

• Number of Terminals:

  56

• Number of Words:

  33554432 words

• Number of Words Code:

  32000000

• Operating Mode:

  ASYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Organization:

  32MX16

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

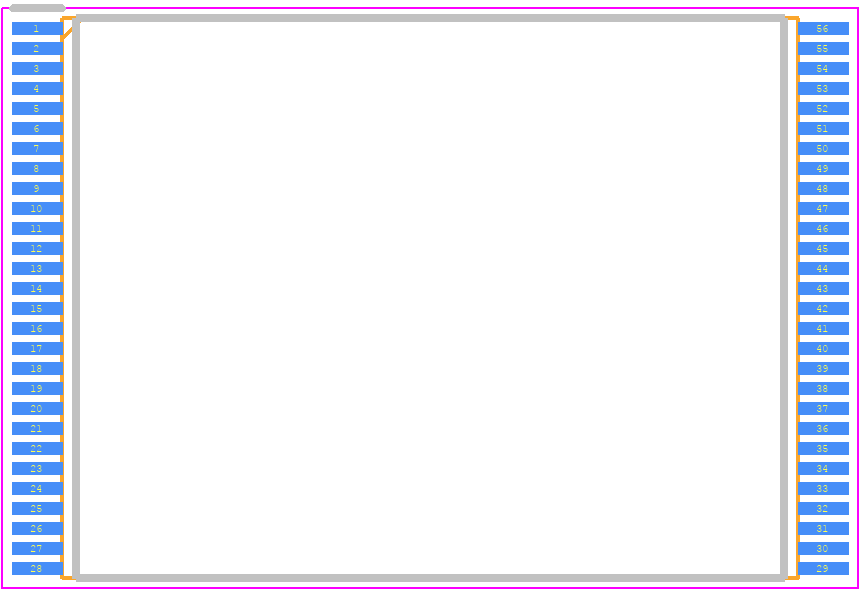

• Package Code:

  TSSOP

• Package Equivalence Code:

  TSSOP56,.78,20

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

• Page Size:

  16 words

• Parallel/Serial:

  PARALLEL

• Programming Voltage:

  3 V

• Qualification Status:

  Not Qualified

• Ready/Busy:

  YES

• Seated Height-Max:

  1.2 mm

• Sector Size:

  64K

• Standby Current-Max:

  0.0001 A

• Supply Current-Max:

  0.1 mA

• Supply Voltage-Max (Vsup):

  3.6 V

• Supply Voltage-Min (Vsup):

  2.7 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Toggle Bit:

  YES

• Type:

  NOR TYPE

• Width:

  14 mm
