S29GL512T12TFN010 - Infineon

Description: NOR Flash Parallel 3V/3.3V 512M-bit 64M x 8/32M x 16 120ns 56-Pin TSOP Tray

Download S29GL512T12TFN010 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

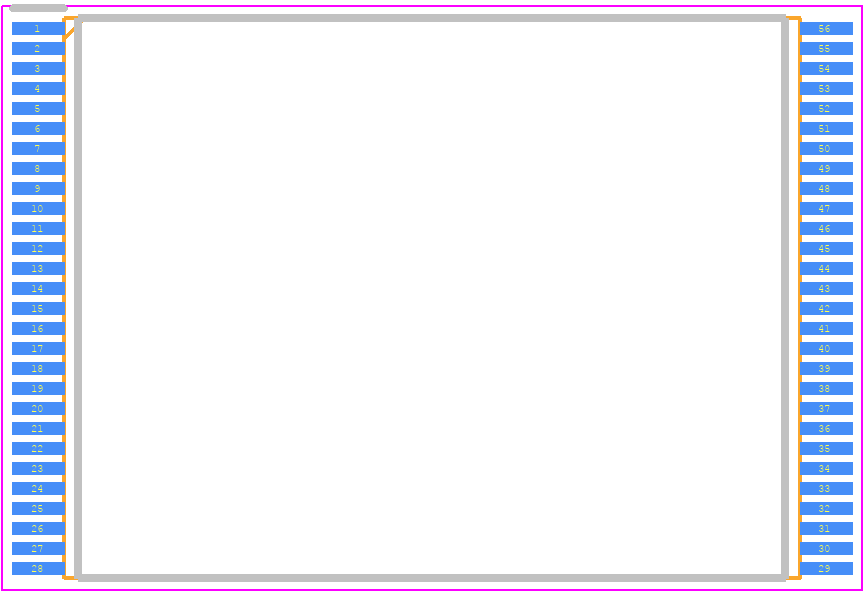

S29GL512T12TFN010 - Infineon PCB footprint - Small Outline Packages - Small Outline Packages - 56-Pin TSOP 14 x 20mm
click to zoom
3D Models
S29GL512T12TFN010 - Infineon  - 3D model - Small Outline Packages - 56-Pin TSOP 14 x 20mm
click to zoom

S29GL512T12TFN010 Details

  • Manufacturer Part Number:

    S29GL512T12TFN010

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Access Time-Max:

    120 ns

  • Alternate Memory Width:

    8

  • JESD-30 Code:

    R-PDSO-G56

  • JESD-609 Code:

    e3

  • Length:

    18.4 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Number of Words:

    33554432 words

  • Number of Words Code:

    32000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    32MX16

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    2.7 V

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    14 mm

S29GL512T12TFN010 Frequently Asked Questions (FAQs)

  • The S29GL512T12TFN010 has an operating temperature range of -40°C to +85°C.
  • The S29GL512T12TFN010 has a minimum of 100,000 program/erase cycles per sector, and 10,000 program/erase cycles per block.
  • The typical programming time for the S29GL512T12TFN010 is 10-15 microseconds per byte.
  • Yes, the S29GL512T12TFN010 is compatible with 3.3V systems, with a VCC supply voltage range of 2.7V to 3.6V.
  • The hold signal (HOLD) is used to pause the device during a read or write operation, while the output enable signal (OE) is used to enable or disable the output buffers. Both signals should be tied low during normal operation.
