S2MHQ-13-F - Diodes Incorporated

S2MHQ-13-F Details

• Manufacturer Part Number:

  S2MHQ-13-F

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

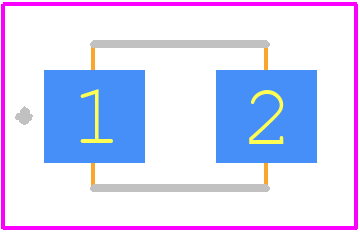

• Package Description:

  SMB, 2 PIN

• ECCN Code:

  EAR99

• HTS Code:

  8541.10.00.80

• Manufacturer:

  Diodes Incorporated

• YTEOL:

  7

• Application:

  GENERAL PURPOSE

• Breakdown Voltage-Min:

  1000 V

• Configuration:

  SINGLE

• Diode Element Material:

  SILICON

• Diode Type:

  RECTIFIER DIODE

• Forward Voltage-Max (VF):

  1.15 V

• JESD-30 Code:

  R-PDSO-C2

• Non-rep Pk Forward Current-Max:

  50 A

• Number of Elements:

  1

• Number of Phases:

  1

• Number of Terminals:

  2

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -65 °C

• Output Current-Max:

  1.5 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE

• Packing Method:

  TR

• Reference Standard:

  AEC-Q101; IATF 16949; MIL-STD-202

• Rep Pk Reverse Voltage-Max:

  1000 V

• Reverse Current-Max:

  5 µA

• Reverse Test Voltage:

  1000 V

• Surface Mount:

  YES

• Terminal Form:

  C BEND

• Terminal Position:

  DUAL
