S32K396NHT1MKUST - NXP

S32K396NHT1MKUST Details

• Manufacturer Part Number:

  S32K396NHT1MKUST

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

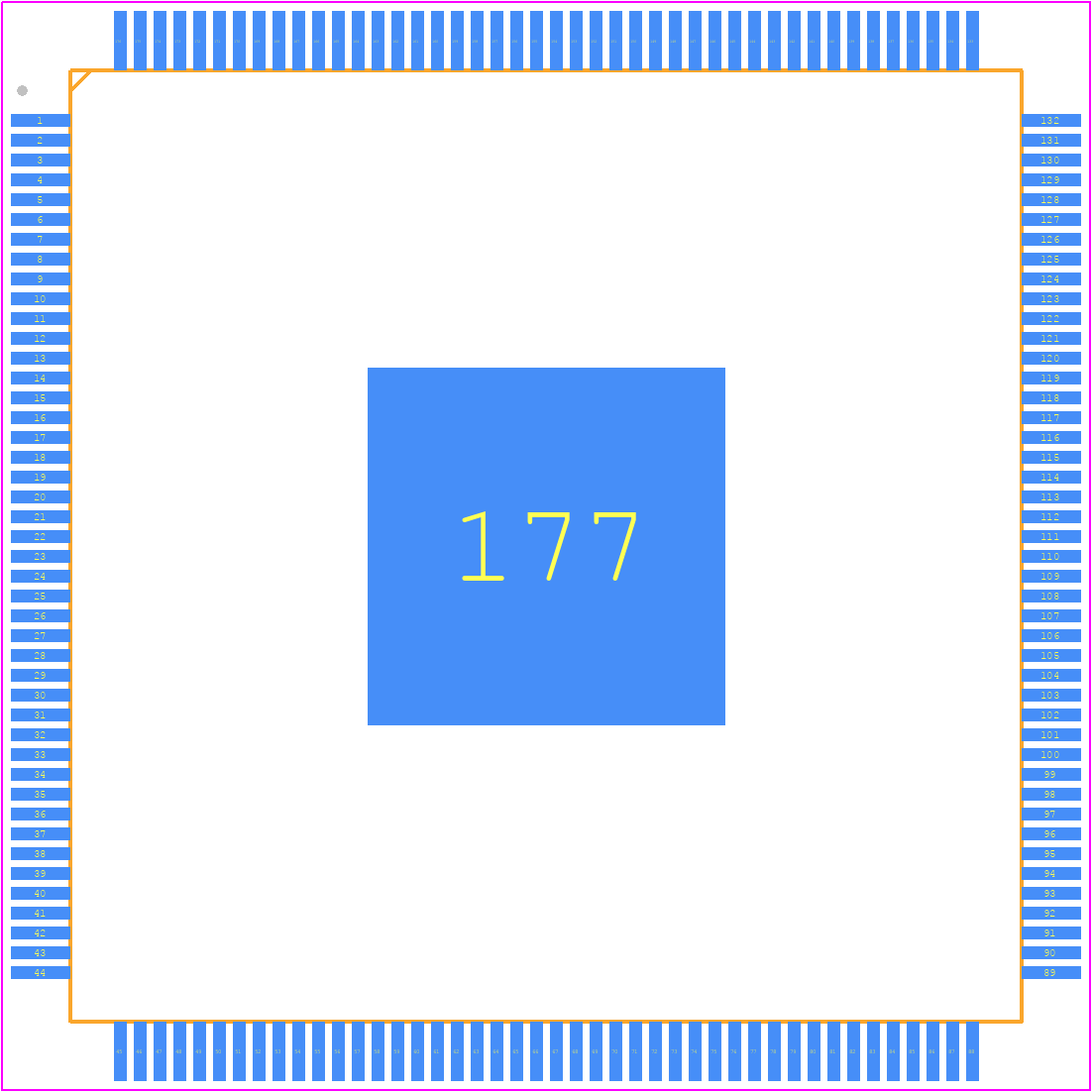

• Package Description:

  HLFQFP, QFP176,1.0SQ,20

• Reach Compliance Code:

  Compliant

• ECCN Code:

  3A991.a.2

• HTS Code:

  8542.31.00.25

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  13

• Has ADC:

  YES

• Bit Size:

  32

• Boundary Scan:

  YES

• CPU Family:

  CORTEX-M7

• Clock Frequency-Max:

  48 MHz

• DAC Channels:

  NO

• DMA Channels:

  YES

• Format:

  FIXED POINT

• Integrated Cache:

  YES

• JESD-30 Code:

  S-PQFP-G176

• Length:

  24 mm

• Low Power Mode:

  YES

• Moisture Sensitivity Level:

  3

• Number of DMA Channels:

  64

• Number of Terminals:

  176

• Number of Timers:

  1

• On Chip Data RAM Width:

  8

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  YES

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HLFQFP

• Package Equivalence Code:

  QFP176,1.0SQ,20

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, HEAT SINK/SLUG, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• RAM (bytes):

  819200

• ROM (words):

  6291456

• ROM Programmability:

  FLASH

• Screening Level:

  ISO 26262-ASIL D

• Seated Height-Max:

  1.6 mm

• Speed:

  320 MHz

• Supply Voltage-Max:

  5.5 V

• Supply Voltage-Min:

  2.97 V

• Supply Voltage-Nom:

  3.3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  24 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER, RISC
