The recommended operating voltage range for the S34ML01G100TFI000 is 2.7V to 3.6V.
The HOLD and HOLDA signals are used for asynchronous data transfer. When the HOLD signal is asserted, the device will tri-state its outputs and ignore any further input signals. The HOLDA signal is an acknowledgement from the device that it has released the bus. You should ensure that your design properly handles these signals to avoid data corruption or bus contention.
The WP pin is used to prevent accidental writes to the device. When the WP pin is tied low, the device is in write-protect mode, and any write operations will be ignored. You can use this pin to protect the device from unwanted writes, especially during power-up or power-down sequences.
The optimal clock frequency depends on your specific application requirements. The S34ML01G100TFI000 can operate at frequencies up to 104 MHz. You should consider factors such as data transfer rates, power consumption, and system latency when selecting a clock frequency for your design.
The S34ML01G100TFI000 is rated for operation up to 85°C. However, high temperatures can affect the device's performance, reliability, and data retention. You should consider using thermal management techniques, such as heat sinks or thermal interfaces, to ensure the device operates within its specified temperature range.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S34ML01G100TFI000 Overview

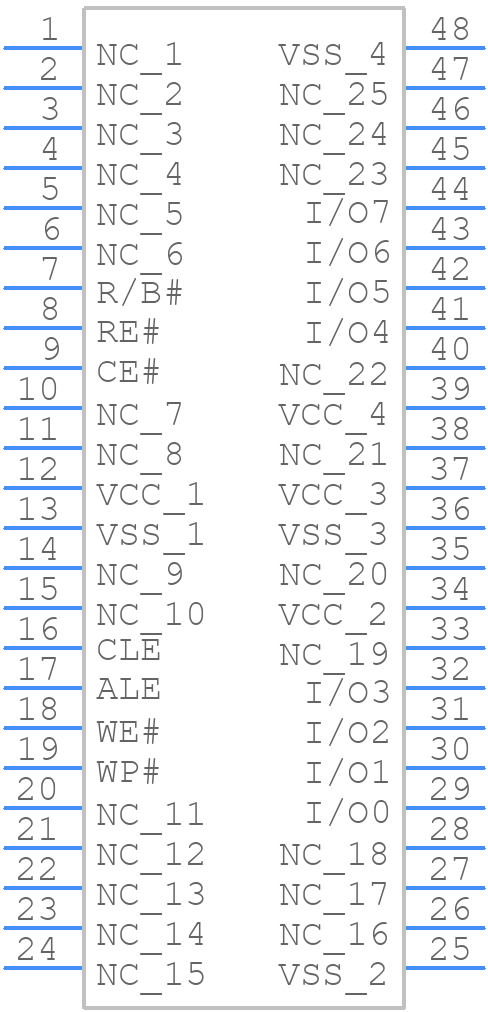

Use the download button to access the S34ML01G100TFI000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S34ML,
or try a keyword search, such as Flash Memories
