Panasonic recommends a PCB layout with a solid ground plane, short and wide traces for power and ground, and a decoupling capacitor (e.g., 10uF) close to the device to minimize noise and ensure stable operation.
Thermal management is crucial for S3EB-5V. Ensure good airflow around the device, and consider using a heat sink or thermal pad if the device is expected to operate at high temperatures or high currents. The device's thermal resistance (Rth) is specified in the datasheet.
While the datasheet specifies the maximum continuous current, it does not explicitly mention surge current. However, Panasonic recommends limiting surge currents to 2-3 times the maximum continuous current to prevent damage to the device.
Yes, S3EB-5V is designed to withstand vibrations. However, it's essential to ensure that the device is properly mounted and secured to the PCB to prevent mechanical stress and damage. Consult Panasonic's vibration testing standards for more information.
To troubleshoot issues with S3EB-5V, start by reviewing the device's operating conditions, PCB layout, and thermal management. Check for signs of overheating, such as discoloration or deformation of the device or surrounding components. Consult Panasonic's application notes and technical support resources for guidance on troubleshooting and debugging.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S3EB-5V Overview

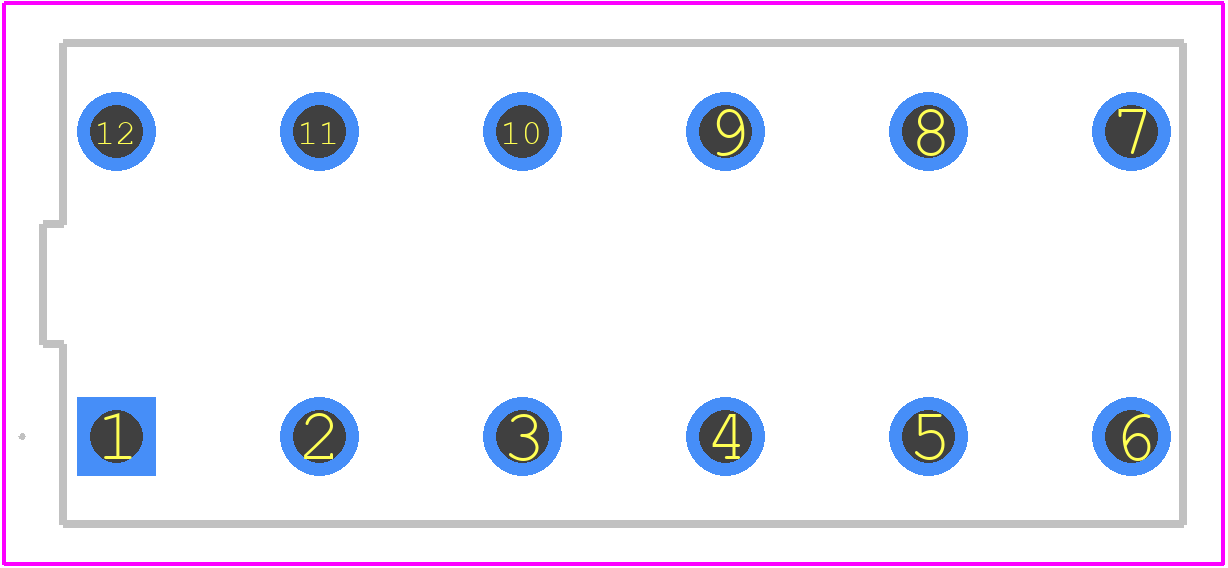

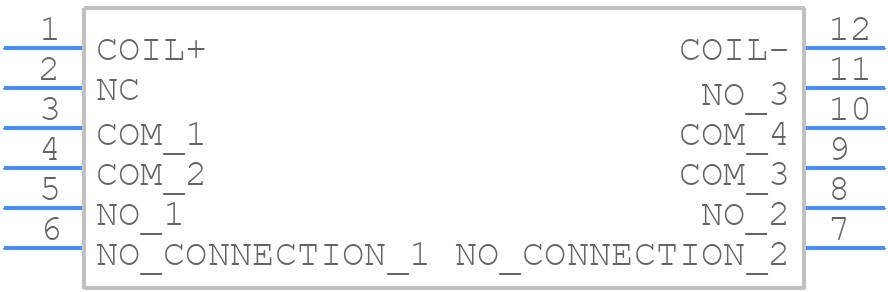

Use the download button to access the S3EB-5V schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S3EB-,
or try a keyword search, such as Power/Signal Relays
