S40FC002C1B1I00310 - SkyHigh Memory

Description: eMMC 2GB e.MMC5.1 BGA 11.5 x 13 x 0.8 mm with Reel Packing: 16MB Boot Code FW e.MMC 5.1 Specification Compatible – Backward compatible with previous e.MMC specifications Operating Voltage VCCQ: 1.7V - 1.95V or 2.7V - 3.6V VCC: 2.7V - 3.6V Density: 2 GB of Data Storage Data Bus Width: sDR Mode: 1 bit, 4 bit, 8 bit DDR Mode: 4 bit, 8 bit HS200 Mode: 4 bit, 8 bit HS400 Mode: 8 bit

Download S40FC002C1B1I00310 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this S40FC002C1B1I00310 model

Email notifications will be applied after download.

Send part feedback

Symbol

S40FC002C1B1I00310 - SkyHigh Memory - PCB symbol

PCB Footprints

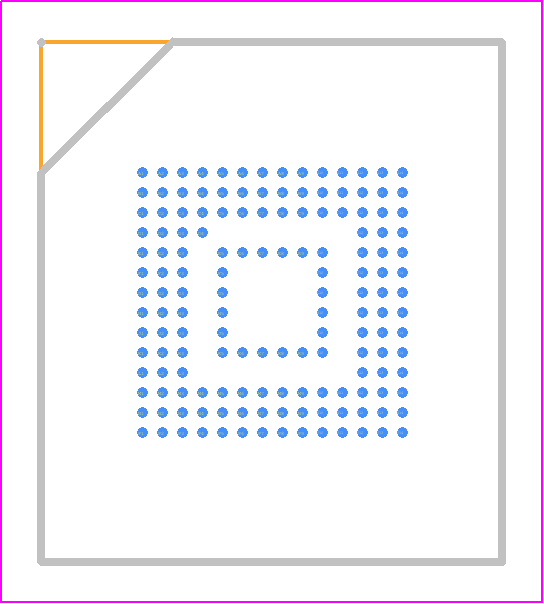

S40FC002C1B1I00310 - SkyHigh Memory PCB footprint - BGA - BGA - VFBGA 153_(H=0.8mm)

3D Models

S40FC002C1B1I00310 - SkyHigh Memory - 3D model - BGA - VFBGA 153_(H=0.8mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for S40FC002C1B1I00310
Part Number S40FC002C1B1I00310
Manufacturer SkyHigh Memory
Pin Count 153
Part Category Integrated Circuit
Package Category BGA
Footprint Name BGA - VFBGA 153_(H=0.8mm)
Released Date Dec 22, 2025
Last Modified Date Dec 22, 2025 11:18 AM UTC
Pinout / Pin List Click Here (Member Only)

S40FC002C1B1I00310 Details

Manufacturer Part Number:
S40FC002C1B1I00310
Manufacturer:
SkyHigh Memory Limited

Trust Checks

Community Provided

System Verified

Community Approved

S40FC002C1B1I00310 Overview

Use the download button to access the S40FC002C1B1I00310 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like S40FC, or try a keyword search, such as Flash Memories
