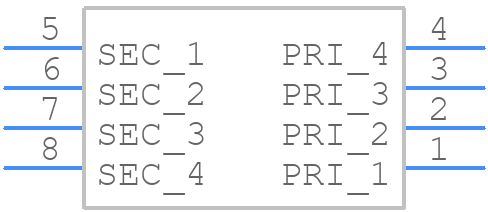

Symbol
PCB Footprints
- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for S5499-DLD
- Part Number S5499-DLD
- Manufacturer COILCRAFT
- Pin Count 8
- Part Category Transformer
- Package Category Other
- Footprint Name Other - S5499-DLD-2
- Released Date Sep 6, 2023
- Last Modified Date Sep 6, 2023 4:24 AM UTC
- Pinout / Pin List Click Here (Member Only)
S5499-DLD Details
-
Manufacturer Part Number:
S5499-DLD
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
CHIP
-
ECCN Code:
EAR99
-
Manufacturer:
Coilcraft Inc
-
YTEOL:
6.65
-
Application:
GATE DRIVE
-
ET Product-Min:
48 V-us
-
Height:
5.46 mm
S5499-DLD Frequently Asked Questions (FAQs)
-
Coilcraft recommends a land pattern with a pad size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad and a 0.5 mm x 0.5 mm thermal pad in the center.
-
To ensure reliable operation, use a sufficient copper thickness (e.g., 2 oz or 3 oz) and a wide enough trace width to handle the high current. Also, consider using a heat sink or thermal vias to dissipate heat.
-
The SRF of the S5499-DLD is not explicitly stated in the datasheet, but it can be estimated using the inductor's inductance and capacitance values. Typically, it falls in the range of 10-50 MHz.
-
The S5499-DLD is rated for operation up to 125°C, but its performance may degrade at higher temperatures. If your application requires operation above 125°C, consider using a different inductor or consulting with Coilcraft's application engineers.
-
Choose an inductor value based on your application's specific requirements, such as the desired inductance, current rating, and frequency of operation. Consult Coilcraft's inductor selection guides or application notes for more information.
Trust Checks
Community Provided
System Verified
Community Approved
S5499-DLD Overview
Use the download button to access the S5499-DLD schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like S5499,
or try a keyword search, such as Pulse/Datacom Transformers
About COILCRAFT
Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
