Infineon provides a recommended PCB layout in the application note AN215 'Layout Recommendations for XMC™ and XMC™2G' which can be found on their website. It's essential to follow these guidelines to ensure optimal performance, especially for high-frequency signals.
The S6AE101A0DGNAB000 has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB to dissipate heat efficiently. Additionally, ensure good airflow around the device and consider using a heat sink if the application requires high power dissipation.
Infineon recommends using ceramic capacitors with a value of 100nF to 1uF, and a voltage rating of at least 10V, placed as close as possible to the power pins of the device. The capacitors should be connected between the power pins and the ground plane to filter out noise and ensure stable operation.
The S6AE101A0DGNAB000 has several power modes, including a low-power mode. To configure the device for low-power mode, refer to the datasheet and the application note AN210 'Power Management for XMC™ and XMC™2G' which provides detailed information on how to use the Power Management Unit (PMU) to control the power modes.
To ensure EMC and EMI compliance, follow the guidelines in the application note AN212 'EMC and EMI Considerations for XMC™ and XMC™2G'. This includes using a shielded enclosure, minimizing loop areas, and using filtering components such as ferrite beads and capacitors to reduce emissions and susceptibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S6AE101A0DGNAB000 Overview

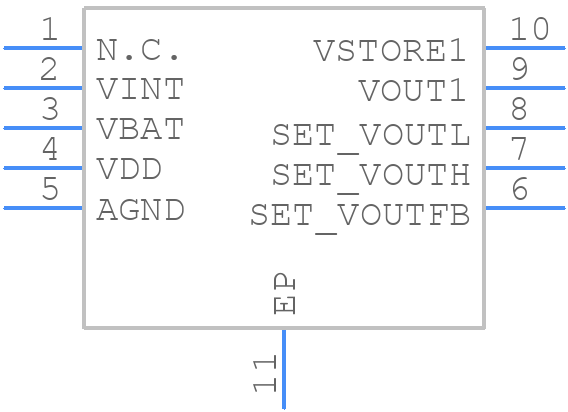

Use the download button to access the S6AE101A0DGNAB000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S6AE1,
or try a keyword search, such as Power Management Circuits
