S70FL01GSDPBHVC10 - Infineon

Description: NOR Flash Nor

Download S70FL01GSDPBHVC10 Model

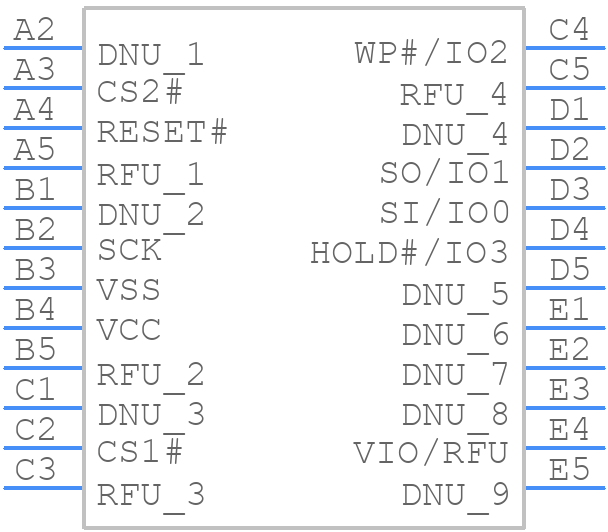

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S70FL01GSDPBHVC10 - Infineon PCB footprint - BGA - BGA - 24-Ball BGA 8 x 6 mm (ZSA024)
click to zoom
3D Models
S70FL01GSDPBHVC10 - Infineon  - 3D model - BGA - 24-Ball BGA 8 x 6 mm (ZSA024)
click to zoom

S70FL01GSDPBHVC10 Details

  • Manufacturer Part Number:

    S70FL01GSDPBHVC10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Clock Frequency-Max (fCLK):

    66 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    1073741824 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TBGA

  • Package Equivalence Code:

    BGA24,5X5,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, THIN PROFILE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    3 V

  • Seated Height-Max:

    1.2 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.0006 A

  • Supply Current-Max:

    0.2 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Type:

    NOR TYPE

  • Width:

    6 mm

  • Write Protection:

    HARDWARE/SOFTWARE

S70FL01GSDPBHVC10 Frequently Asked Questions (FAQs)

  • Infineon provides a recommended PCB layout guide in their application note AN2013-01, which includes guidelines for component placement, routing, and thermal management to ensure optimal performance and reliability.
  • The S70FL01GSDPBHVC10 has a thermal pad on the bottom side, which should be connected to a thermal ground plane on the PCB to dissipate heat. Additionally, Infineon recommends using a heat sink or thermal interface material to further improve thermal management.
  • The S70FL01GSDPBHVC10 is rated for operation from -40°C to 125°C, but the maximum junction temperature (Tj) should not exceed 150°C to ensure reliability and prevent damage.
  • The S70FL01GSDPBHVC10 can be programmed using Infineon's FlashFX Pro software tool, which provides a graphical user interface for programming and debugging the device. The tool is available for download on Infineon's website.
  • Infineon recommends a power-up sequence of VCC first, followed by VPP, and then the clock signal. This sequence helps to prevent latch-up and ensures proper device operation.
