Infineon provides a recommended PCB layout and thermal management guide in their application note AN2014-01, which includes guidelines for thermal pad connection, PCB thickness, and copper thickness to ensure optimal performance and thermal dissipation.
The power-up and power-down sequencing is critical for the device. Infineon recommends following the power-up sequence: VCC, VCCQ, and then VREF. For power-down, the sequence should be reversed. Additionally, ensure that the power supplies are ramped up and down slowly to prevent damage to the device.
The input and output capacitors should be selected based on the operating frequency, output current, and voltage ripple requirements. Infineon recommends using X7R or X5R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The capacitor values should be chosen to ensure a stable output voltage and minimize voltage ripple.
Infineon recommends implementing overcurrent protection using an external current sense resistor and a comparator or a dedicated overcurrent protection IC. For short-circuit protection, a fuse or a PPTC (Polymeric Positive Temperature Coefficient) device can be used. The specific implementation details depend on the application requirements and should be carefully evaluated to ensure reliable operation.
For high-power applications, thermal design is critical. Infineon recommends using a heat sink with a thermal resistance of less than 10°C/W, and ensuring good thermal contact between the device and the heat sink. The PCB should be designed to minimize thermal resistance, and thermal vias should be used to dissipate heat from the top layer to the bottom layer. Additionally, the device should be placed in a well-ventilated area to ensure adequate airflow.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S70FS01GSAGMFI010 Overview

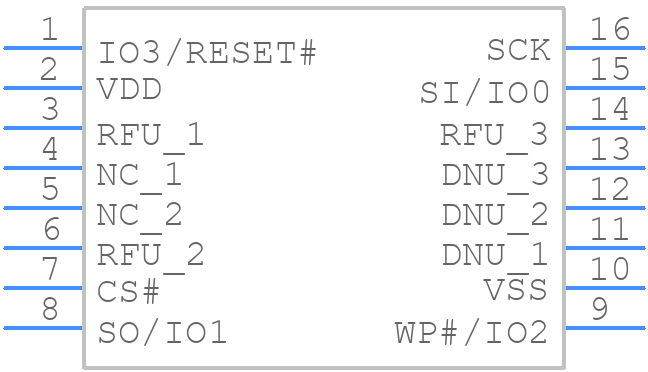

Use the download button to access the S70FS01GSAGMFI010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S70FS,
or try a keyword search, such as Flash Memories
