The recommended operating temperature range for the S70GL02GT11FHA010 is -40°C to 85°C.
The hold signal (HOLD#) should be asserted low to pause the current operation and de-asserted high to resume the operation. During hold, the device will tri-state its outputs and ignore any further input signals.
The write protect (WP#) signal is used to prevent accidental writes to the device. When WP# is asserted low, the device will ignore any write commands and protect the contents of the memory.
The S70GL02GT11FHA010 is a 2Gb (256MB) flash memory device, organized as 2048 blocks of 128KB each, with 8192 bytes per page.
The typical programming time for the S70GL02GT11FHA010 is 3-5ms per 256-byte page, and 20-30ms for a full chip erase.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
S70GL02GT11FHA010 Overview

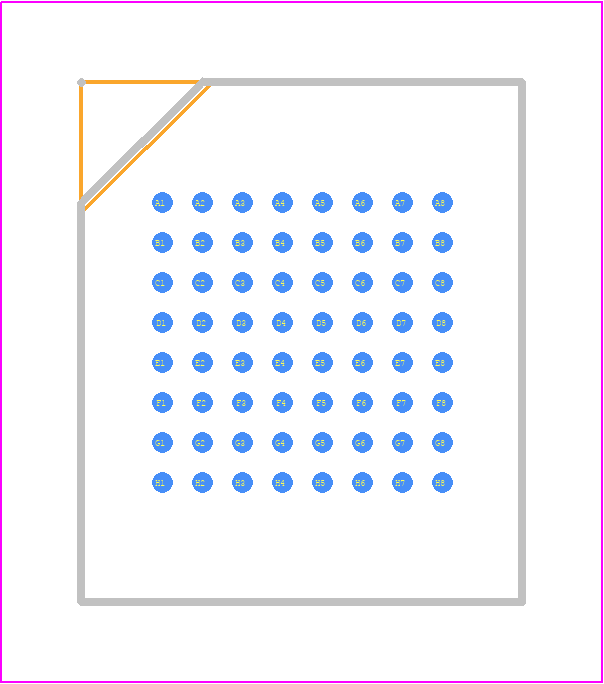

Use the download button to access the S70GL02GT11FHA010 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like S70GL,
or try a keyword search, such as Flash Memories
