S70GL02GT12FHIV10 - Infineon

Description: -40°C ~ 85°C FLASH - NOR Memory IC 2Gbit Parallel 120 ns 64-FBGA (11x13)

Download S70GL02GT12FHIV10 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

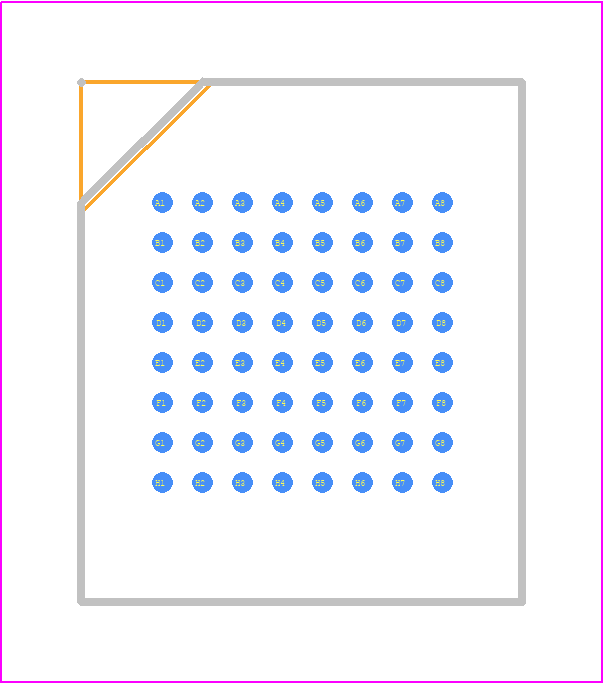

S70GL02GT12FHIV10 - Infineon PCB footprint - BGA - BGA - LSH064 — 64-ball fortified ball grid array, 13 x 11 mm
click to zoom
3D Models
S70GL02GT12FHIV10 - Infineon  - 3D model - BGA - LSH064 — 64-ball fortified ball grid array, 13 x 11 mm
click to zoom

S70GL02GT12FHIV10 Details

  • Manufacturer Part Number:

    S70GL02GT12FHIV10

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Factory Lead Time:

    10 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    10

  • Access Time-Max:

    120 ns

  • Alternate Memory Width:

    8

  • Command User Interface:

    NO

  • Common Flash Interface:

    Y

  • Data Polling:

    YES

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B64

  • JESD-609 Code:

    e1

  • Length:

    13 mm

  • Memory Density:

    2147483648 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    16

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Sectors/Size:

    2K

  • Number of Terminals:

    64

  • Number of Words:

    134217728 words

  • Number of Words Code:

    128000000

  • Operating Mode:

    ASYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    128MX16

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LBGA

  • Package Equivalence Code:

    BGA64,8X8,40

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, LOW PROFILE

  • Page Size:

    16/32 words

  • Parallel/Serial:

    PARALLEL

  • Programming Voltage:

    3 V

  • Ready/Busy:

    YES

  • Seated Height-Max:

    1.4 mm

  • Sector Size:

    128K

  • Standby Current-Max:

    0.0002 A

  • Supply Current-Max:

    0.16 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Tin/Silver/Copper (Sn/Ag/Cu)

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Toggle Bit:

    NO

  • Type:

    NOR TYPE

  • Width:

    11 mm

S70GL02GT12FHIV10 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and thermal vias is recommended for optimal thermal performance. The datasheet provides a recommended PCB layout, but it's essential to consult with a thermal expert or perform thermal simulations to ensure optimal design.
  • To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal interface material, and ensure good airflow around the device. Additionally, consider using a heat sink or thermal management system to keep the device within the recommended temperature range.
  • Operating the device at the maximum junction temperature can reduce its lifespan and affect its reliability. It's essential to ensure that the device operates within the recommended temperature range to maintain its performance and longevity.
  • To prevent ESD damage, handle the device with an ESD wrist strap or mat, and ensure that the assembly process is ESD-protected. Use ESD-protected packaging and follow proper handling procedures to prevent damage during transportation and storage.
  • Store the device in a dry, cool place, away from direct sunlight and moisture. The recommended storage temperature range is -40°C to 125°C, and the relative humidity should be below 60%. Use anti-static packaging and follow proper storage procedures to prevent damage.
