S71KS512SC0BHV000 - Infineon

Description: HyperFlasH and HyperRAM

Download S71KS512SC0BHV000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

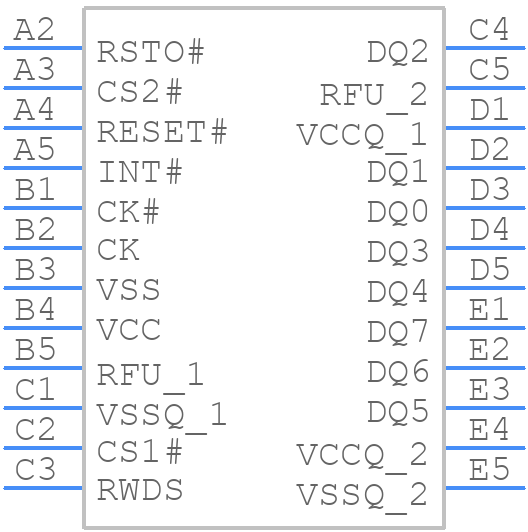

Symbol
S71KS512SC0BHV000 - Infineon - PCB symbol
click to zoom
PCB Footprints
S71KS512SC0BHV000 - Infineon PCB footprint - BGA - BGA - ELA024 — FBGA 24-Ball 6 x 8 x 1 mm
click to zoom
3D Models
S71KS512SC0BHV000 - Infineon - 3D model - BGA - ELA024 — FBGA 24-Ball 6 x 8 x 1 mm
click to zoom

S71KS512SC0BHV000 Details

  • Manufacturer Part Number:

    S71KS512SC0BHV000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.71

  • Factory Lead Time:

    32 Weeks

  • Manufacturer:

    Infineon Technologies AG

  • YTEOL:

    0

  • Additional Feature:

    HYPER RAM IS ORGANISED AS 8MX8

  • JESD-30 Code:

    R-PBGA-B24

  • Length:

    8 mm

  • Memory Density:

    536870912 bit

  • Memory IC Type:

    MEMORY CIRCUIT

  • Memory Width:

    8

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of Words:

    67108864 words

  • Number of Words Code:

    64000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    64MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VBGA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    BOTTOM

  • Width:

    6 mm

S71KS512SC0BHV000 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the S71KS512SC0BHV000 is -40°C to 125°C, as specified in the datasheet.
  • The power-up sequence for the S71KS512SC0BHV000 should follow the recommended sequence in the datasheet, which is VCC first, then VPP, and finally the clock signal. This ensures proper device initialization and prevents latch-up or other issues.
  • The maximum allowed voltage on the VPP pin is 3.6V, as specified in the datasheet. Exceeding this voltage may damage the device.
  • A reliable reset mechanism can be implemented using an external reset circuit, such as a voltage supervisor or a reset generator IC, which ensures a clean and controlled reset signal to the device.
  • When designing a PCB with the S71KS512SC0BHV000, consider using a 4-layer board with a solid ground plane, decoupling capacitors near the device, and minimizing signal trace lengths and impedance mismatches to ensure signal integrity and reduce noise.
