S8KL-TP - MCC

Description: Standard Recovery Rectifiers

Download S8KL-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
S8KL-TP - MCC - PCB symbol
click to zoom
PCB Footprints

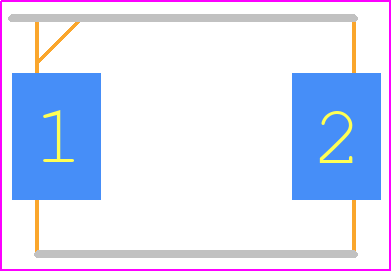

S8KL-TP - MCC PCB footprint - Diodes Moulded - Diodes Moulded - S8KL-TP*
click to zoom
3D Models
S8KL-TP - MCC - 3D model - Diodes Moulded - S8KL-TP*
click to zoom

S8KL-TP Details

  • Manufacturer Part Number:

    S8KL-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DO-214AB

  • Package Description:

    SMC, 2 PIN

  • Pin Count:

    2

  • Country Of Origin:

    Mainland China, Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.80

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    6

  • Additional Feature:

    LOW LEAKAGE CURRENT

  • Application:

    GENERAL PURPOSE

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    RECTIFIER DIODE

  • Forward Voltage-Max (VF):

    1.05 V

  • JEDEC-95 Code:

    DO-214AB

  • JESD-30 Code:

    R-PDSO-C2

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Non-rep Pk Forward Current-Max:

    200 A

  • Number of Elements:

    1

  • Number of Phases:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    8 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    800 V

  • Reverse Current-Max:

    5 µA

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    C BEND

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    40

S8KL-TP Frequently Asked Questions (FAQs)

  • The recommended PCB layout and land pattern for the S8KL-TP can be found in the Micro Commercial Components' application note AN-113, which provides detailed guidelines for PCB design and layout to ensure optimal performance and reliability.
  • The S8KL-TP has an internal power-on reset circuit that ensures proper power sequencing and voltage ramp-up. The device also has a built-in soft-start feature that limits inrush current during power-up. However, it's still recommended to follow a controlled power-up sequence and voltage ramp-up to prevent damage to the device or other components on the board.
  • While the datasheet specifies an operating temperature range of -40°C to 85°C, the S8KL-TP can actually operate up to 105°C with some derating. However, it's essential to consult with Micro Commercial Components' application engineers to determine the suitable operating temperature range for specific use cases and to ensure reliable operation.
  • The S8KL-TP is designed to withstand moderate levels of vibration and shock. However, for high-vibration or high-shock environments, it's recommended to use additional mechanical support or mounting mechanisms to ensure the device remains securely attached to the PCB. Consult with Micro Commercial Components' application engineers for specific guidance on using the S8KL-TP in harsh environments.
  • The S8KL-TP has a built-in brownout detection circuit that resets the device during voltage sag conditions. The device will automatically recover once the input voltage returns to a stable level. However, it's essential to ensure that the input voltage remains within the specified operating range to prevent damage to the device or other components on the board.
