S9S12D64F0CFUER - NXP

Description: IC MCU

Download S9S12D64F0CFUER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

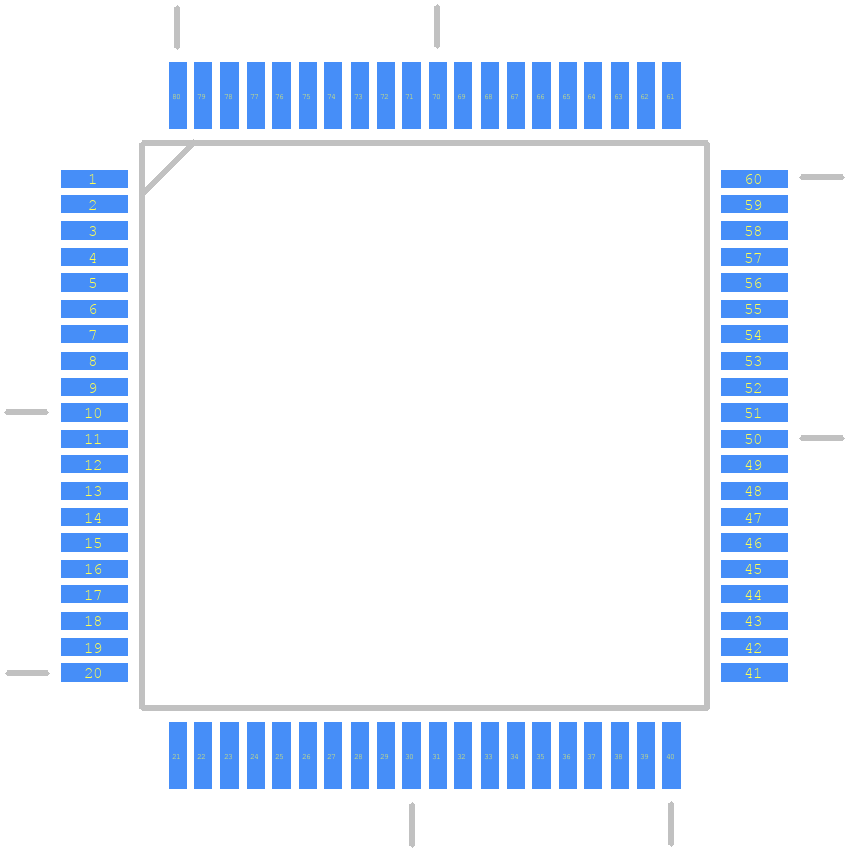

S9S12D64F0CFUER - NXP PCB footprint - Other - Other - QFP65P1720X1720X245-80N
click to zoom
3D Models
S9S12D64F0CFUER - NXP  - 3D model - Other - QFP65P1720X1720X245-80N
click to zoom

S9S12D64F0CFUER Details

  • Manufacturer Part Number:

    S9S12D64F0CFUER

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    HQFP-80

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    1

  • Has ADC:

    NO

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    S9S12

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • Format:

    FIXED POINT

  • Integrated Cache:

    NO

  • JESD-30 Code:

    S-PQFP-G80

  • Low Power Mode:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Terminals:

    80

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    NO

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HQFP

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, HEAT SINK/SLUG

  • Peak Reflow Temperature (Cel):

    260

  • ROM (words):

    65536

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Speed:

    25 MHz

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

S9S12D64F0CFUER Frequently Asked Questions (FAQs)

  • The S9S12D64F0CFUER can operate from -40°C to 125°C, but the recommended operating temperature range is -40°C to 105°C.
  • The clock settings can be configured using the Clock Generation Module (CGM) registers. The CGM module allows you to select the clock source, divide the clock frequency, and enable/disable the clock outputs. Refer to the device's reference manual for more information.
  • The internal oscillator can operate up to 25 MHz, but the recommended frequency is 16 MHz to ensure optimal performance and power consumption.
  • The S9S12D64F0CFUER has a built-in watchdog timer (COP) that can be enabled and configured using the COP control registers. The COP timer can be set to timeout after a specified period, and can be reset by writing to the COP control register.
  • The maximum current consumption of the S9S12D64F0CFUER depends on the operating frequency, voltage, and peripheral usage. According to the datasheet, the maximum current consumption is around 35 mA at 25 MHz and 3.3V, but this can vary depending on the specific application.
