S9S12DJ12F1VPVE - NXP

S9S12DJ12F1VPVE Details

• Manufacturer Part Number:

  S9S12DJ12F1VPVE

• Pbfree Code:

  Yes

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

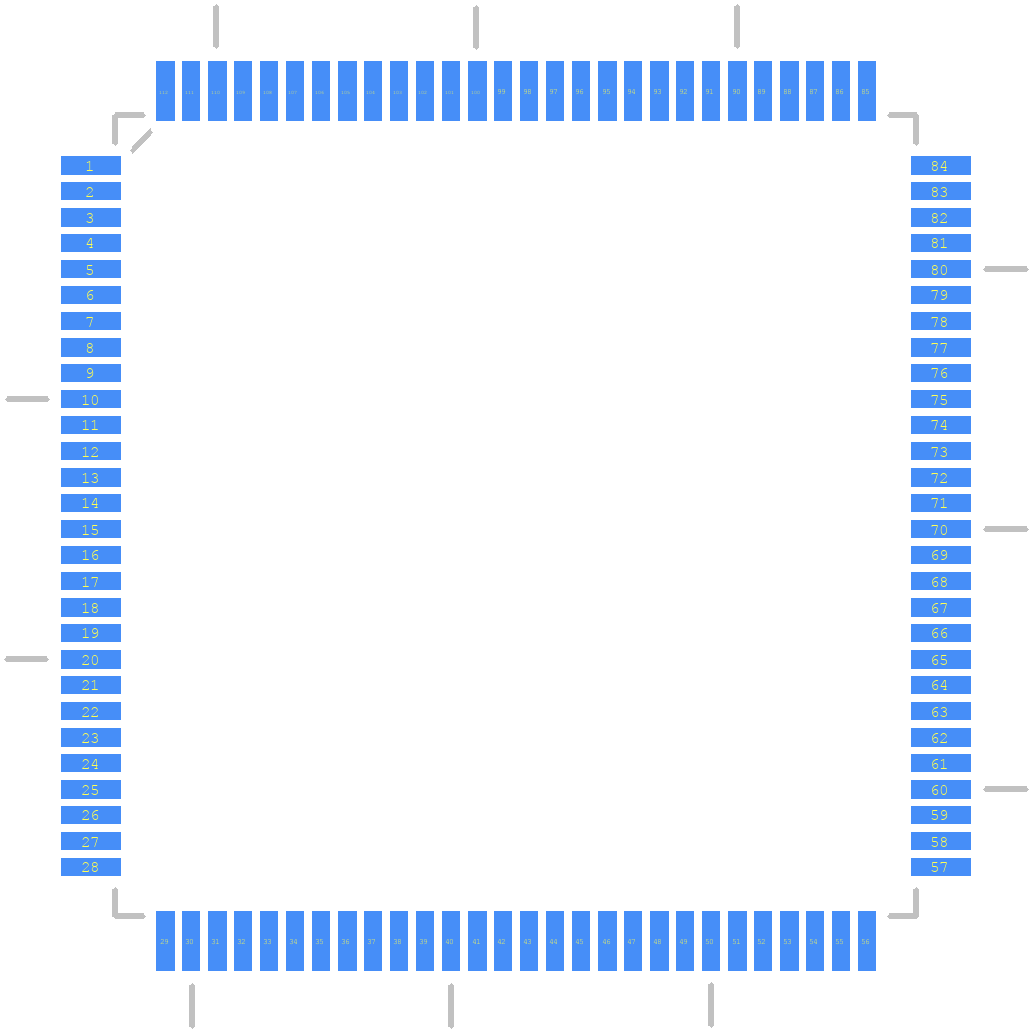

• Package Description:

  LQFP-112

• Country Of Origin:

  Malaysia

• ECCN Code:

  3A991.A.2

• HTS Code:

  8542.31.00.01

• Manufacturer:

  NXP Semiconductors

• YTEOL:

  0

• Has ADC:

  YES

• Address Bus Width:

  16

• Bit Size:

  16

• Boundary Scan:

  NO

• Clock Frequency-Max:

  16 MHz

• DAC Channels:

  NO

• DMA Channels:

  NO

• External Data Bus Width:

  16

• JESD-30 Code:

  S-PQFP-G112

• JESD-609 Code:

  e3

• Length:

  20 mm

• Moisture Sensitivity Level:

  3

• Number of I/O Lines:

  91

• Number of Terminals:

  112

• On Chip Program ROM Width:

  8

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PWM Channels:

  NO

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  LFQFP

• Package Shape:

  SQUARE

• Package Style:

  FLATPACK, LOW PROFILE, FINE PITCH

• Peak Reflow Temperature (Cel):

  260

• ROM (words):

  131072

• ROM Programmability:

  FLASH

• Seated Height-Max:

  1.6 mm

• Speed:

  25 MHz

• Supply Voltage-Nom:

  5 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  INDUSTRIAL

• Terminal Finish:

  Tin (Sn)

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  QUAD

• Time@Peak Reflow Temperature-Max (s):

  40

• Width:

  20 mm

• uPs/uCs/Peripheral ICs Type:

  MICROCONTROLLER
