S9S12GN32F1MLC - NXP

Description: MCU 16-bit S12 CISC 32KB Flash 3.3V/5V Automotive 32-Pin LQFP Tray

Download S9S12GN32F1MLC Model

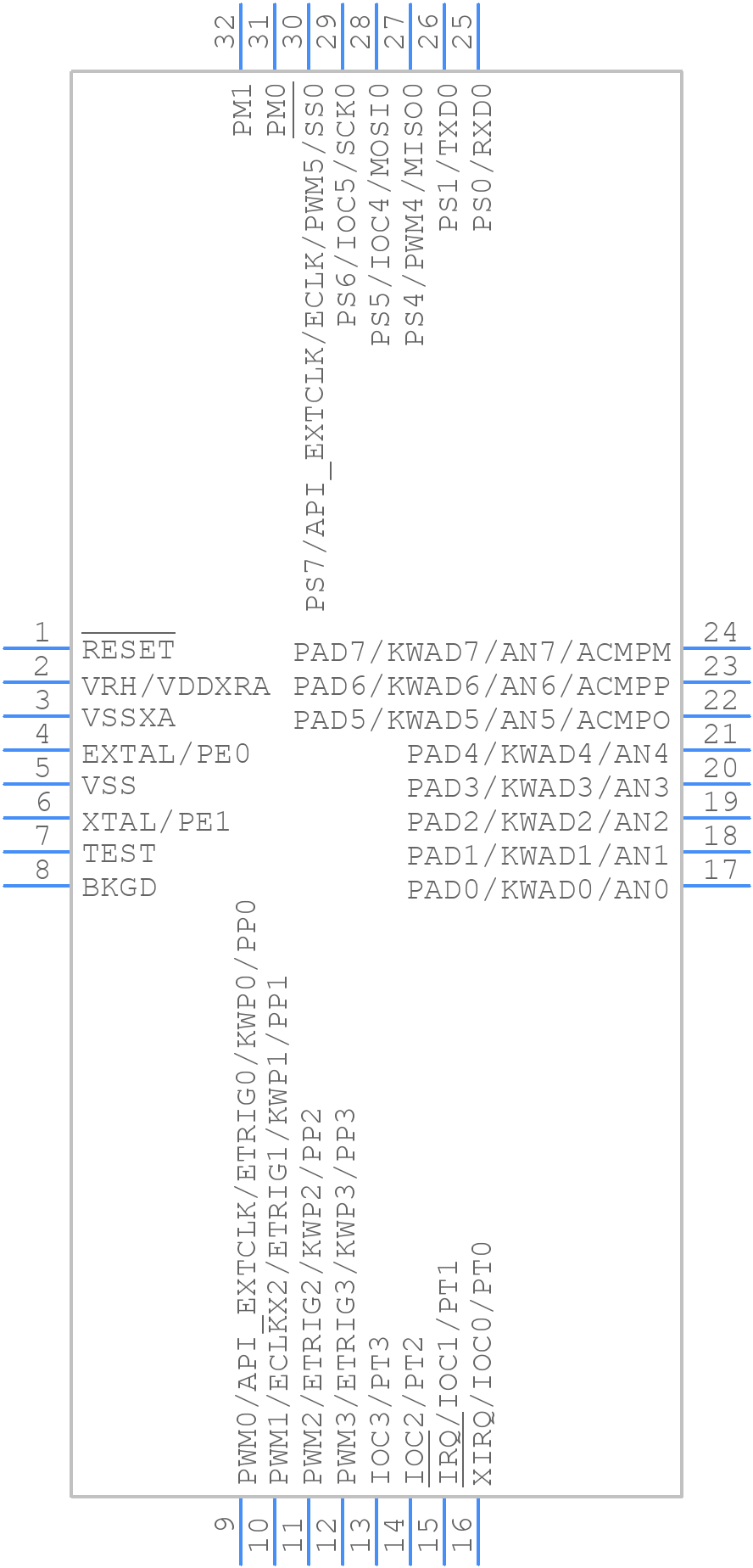

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
S9S12GN32F1MLC - NXP PCB footprint - Quad Flat Packages - Quad Flat Packages - 32-LQFP (7x7)_2020
click to zoom
3D Models
S9S12GN32F1MLC - NXP  - 3D model - Quad Flat Packages - 32-LQFP (7x7)_2020
click to zoom

S9S12GN32F1MLC Details

  • Manufacturer Part Number:

    S9S12GN32F1MLC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    3A991.A.2

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    NXP Semiconductors

  • YTEOL:

    6

  • Has ADC:

    YES

  • Bit Size:

    16

  • Boundary Scan:

    NO

  • CPU Family:

    CPU12

  • Clock Frequency-Max:

    16 MHz

  • DAC Channels:

    NO

  • DMA Channels:

    NO

  • JESD-30 Code:

    S-PQFP-G32

  • JESD-609 Code:

    e3

  • Length:

    7 mm

  • Moisture Sensitivity Level:

    3

  • Number of I/O Lines:

    26

  • Number of Terminals:

    32

  • On Chip Program ROM Width:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • PWM Channels:

    YES

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LQFP

  • Package Equivalence Code:

    QFP32,.35SQ,32

  • Package Shape:

    SQUARE

  • Package Style:

    FLATPACK, LOW PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • RAM (bytes):

    2048

  • ROM (words):

    32768

  • ROM Programmability:

    FLASH

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.4 mm

  • Speed:

    25 MHz

  • Supply Current-Max:

    16 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    3.13 V

  • Supply Voltage-Nom:

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.8 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    40

  • Width:

    7 mm

  • uPs/uCs/Peripheral ICs Type:

    MICROCONTROLLER

S9S12GN32F1MLC Frequently Asked Questions (FAQs)

  • The maximum operating frequency of the S9S12GN32F1MLC is 25 MHz.
  • The S9S12GN32F1MLC has 32 KB of flash memory.
  • The S9S12GN32F1MLC operates from a voltage range of 2.7V to 5.5V.
  • Yes, the S9S12GN32F1MLC has a built-in oscillator that can be used as a clock source.
  • The maximum current consumption of the S9S12GN32F1MLC is approximately 15 mA at 25 MHz.
