- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for SA556N
- Part Number SA556N
- Manufacturer Texas Instruments
- Pin Count 14
- Part Category Integrated Circuit
- Package Category Dual-In-Line Packages
- Footprint Name Dual-In-Line Packages - N (R-PDIP-T)
- Released Date Feb 1, 2016
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
SA556N Details
-
Manufacturer Part Number:
SA556N
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Pin Count:
14
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
SA556N Frequently Asked Questions (FAQs)
-
The recommended power-on sequence is to apply VCC before applying VEE. This ensures that the internal circuitry is properly biased and prevents damage to the device.
-
Ensure that the supply voltage (VCC) is within the recommended range of 5V to 15V, and the temperature range is within -40°C to 85°C. Also, ensure that the input signals are within the recommended voltage range and do not exceed the maximum ratings.
-
The maximum frequency of operation for the SA556N is 1.2 MHz. However, the actual frequency of operation may be limited by the specific application and the quality of the external components used.
-
To minimize noise and interference, use a well-regulated power supply, decouple the power supply lines with capacitors, and use a ground plane to reduce electromagnetic interference. Additionally, use shielded cables and keep the circuit layout as compact as possible.
-
No, the SA556N is not recommended for use in switching power supply applications. It is designed for linear applications such as audio amplifiers, filters, and oscillators.
Trust Checks
Community Provided
System Verified
Community Approved
SA556N Overview

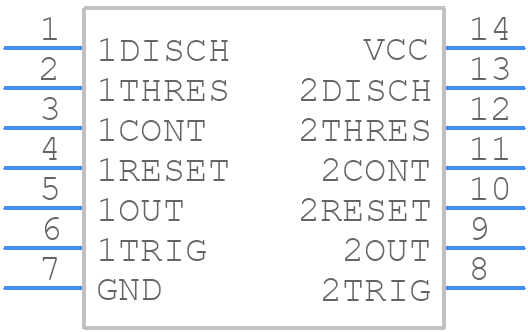

Use the download button to access the SA556N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA556,
or try a keyword search, such as Analog Waveform Generation Functions
