SA556NE4 - Texas Instruments

Description: Timers & Support Products DUAL PRECISION TIMER

Download SA556NE4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

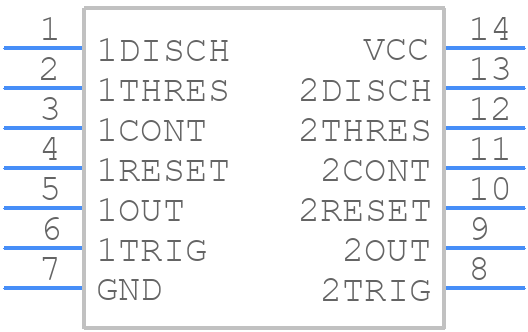

SA556NE4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
SA556NE4 - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom
3D Models
SA556NE4 - Texas Instruments - 3D model - Dual-In-Line Packages - N (R-PDIP-T)
click to zoom

SA556NE4 Details

  • Manufacturer Part Number:

    SA556NE4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    DIP

  • Package Description:

    ROHS COMPLIANT, PLASTIC, DIP-14

  • Pin Count:

    14

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    0

  • Additional Feature:

    CAN ALSO OPERATE FROM A 15V NOMINAL SUPPLY

  • Analog IC - Other Type:

    PULSE; RECTANGULAR

  • JESD-30 Code:

    R-PDIP-T14

  • JESD-609 Code:

    e4

  • Length:

    19.305 mm

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP14,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    30 mA

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Technology:

    BIPOLAR

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Width:

    7.62 mm

SA556NE4 Frequently Asked Questions (FAQs)

  • The recommended power-on sequence is to apply VCC first, followed by VDD. This ensures that the internal voltage regulators are powered up correctly.
  • To minimize noise and EMI, it is recommended to keep the analog and digital grounds separate, use a solid ground plane, and keep the power supply decoupling capacitors close to the device. Additionally, use a shielded cable for the clock input and keep the clock signal away from the analog signals.
  • The maximum clock frequency that can be used with the SA556NE4 is 40 MHz. However, it is recommended to use a clock frequency of 30 MHz or less to ensure reliable operation and minimize jitter.
  • The SA556NE4 can be configured for different clock modes by setting the appropriate values on the CLK_SEL and CLK_MODE pins. Refer to the datasheet for the specific pin configurations for each clock mode.
  • The recommended termination scheme for the output signals of the SA556NE4 is to use a 50-ohm resistor in series with a 50-pF capacitor to ground. This helps to reduce reflections and improve signal integrity.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

SA556NE4 Overview

Use the download button to access the SA556NE4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like SA556, or try a keyword search, such as Analog Waveform Generation Functions
